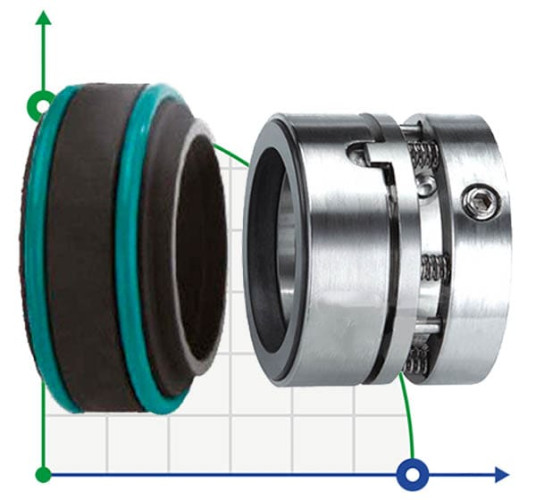

Mechanical seal R-960 80, SIC/SIC, VITON, 304, T30LE
Mechanical seal R-960 80, SIC/SIC, VITON, 304, T30LE
Mechanical seal R-960 80, SIC/SIC, VITON, 304, T30LE
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
1.2 MPa
Operating temperature:
-20°C +200°C
Rotation velocity:
25 m / s
Seal type:
R-960
Type of conta-ring:
T30LE
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-960 68, SIC/SIC, VITON, 304, T30LE
Pre-order only
$575.04
Mechanical seal R-960 70, SIC/SIC, VITON, 304, T30LE
Pre-order only
$592.35
Mechanical seal R-960 75, SIC/SIC, VITON, 304, T30LE
Pre-order only
$633.66
Mechanical seal R-960 85, SIC/SIC, VITON, 304, T30LE
Pre-order only
$718.84
Mechanical seal R-960 90, SIC/SIC, VITON, 304, T30LE
Pre-order only
$761.43
Mechanical seal R-960 95, SIC/SIC, VITON, 304, T30LE
Pre-order only
$804.02
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-960 80, SIC/SIC, VITON, 304, T30LE
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 1.2 MPa |
Operating temperature | -20°C +200°C |
Rotation velocity | 25 m / s |
Seal type | R-960 |
Type of conta-ring | T30LE |
Shaft diameter | 80 |
Rubber type | VITON |
Material of metal part | 304 |
Analogue for | AESSEAL MP080 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-960 80, SIC/SIC, VITON, 304, T30LE

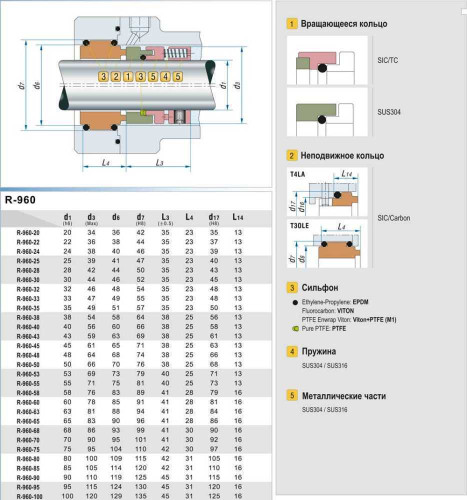

R-960 - a mechanical seal with several sealing rings and spring of PTFE V-Ring. Widely used in paper, textile, chemical and water treatment industries. Analogue Flowserve Series RO.
The mechanical seal is used at temperatures ranging from -20 to + 120°C, a pressure up to 1, 2 MPa and the rotation speed to 25 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-960 80, SIC/SIC, VITON, 304, T30LE
Download instructions, catalog for Mechanical seal R-960 80, SIC/SIC, VITON, 304, T30LE
