Mechanical seal R-B151 5/8, SIC/SIC, VITON, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
1.2 MPa
Operating temperature:
-40°C +200°C
Rotation velocity:
15 m/s
Seal type:
R-B151
Shaft diameter:
5/8
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-B151 44, SIC/SIC, VITON, 304
Pre-order only
$159.33
Mechanical seal R-B151 45, SIC/SIC, VITON, 304
Pre-order only
$159.33
Mechanical seal R-B151 48, SIC/SIC, VITON, 304
Pre-order only
$170.51
Mechanical seal R-B151 50, SIC/SIC, VITON, 304
Pre-order only
$177.54
Mechanical seal R-B151 53, SIC/SIC, VITON, 304
Pre-order only
$187.29
Mechanical seal R-B151 55, SIC/SIC, VITON, 304
Pre-order only
$194.31
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-B151 5/8, SIC/SIC, VITON, 304
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 1.2 MPa |
Operating temperature | -40°C +200°C |
Rotation velocity | 15 m/s |
Seal type | R-B151 |
Shaft diameter | 5/8 |
Rubber type | VITON |
Material of metal part | 304 |
Analogue for | Vulcan 1522, Vulcan 1511, Flowserve 152, Flowserve 151, AESSEAL BP05, AESSEAL BP04 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-B151 5/8, SIC/SIC, VITON, 304

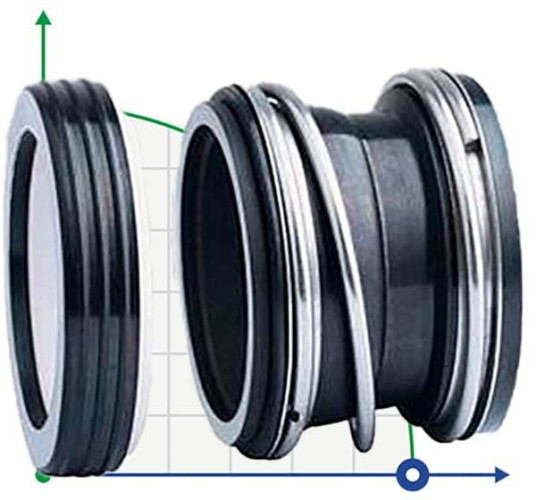

The end seal R-B151 is of bellows type, single, with a central spring, does not depend on the direction of rotation of the shaft. For inch shafts (from 0.5" to 3.00") with the working length of the American standard.
Application: centrifugal pumps, vacuum pumps, water supply systems, wastewater treatment, moderately abrasive liquids, chemistry, food industry, etc.
Type: Vulcan 1511/1522, AESSEAL BP04 / BP05, Flowserve 151 /152.
Temperature: -40°~200°
Pressure: ≤1.20 MPa
Speed: ≤15 m/sec
Materials:
- Rotary ring: Carbon/SIC/TC.
- Stationary ring: Ceramic/SIC/TC.
- Bellows: NBR/ EPDM/VITON.
- Spring: SS304 / SS316.
- Metal parts: SS304 / SS316.
