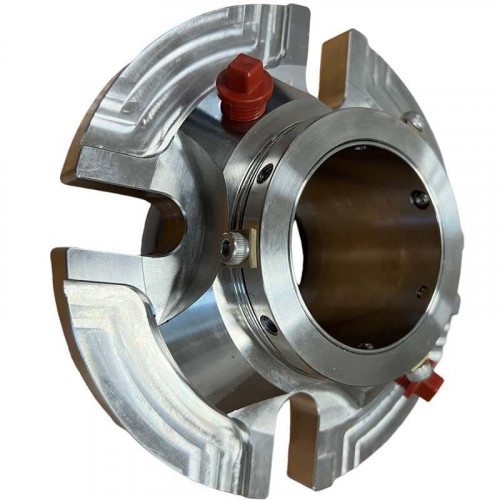

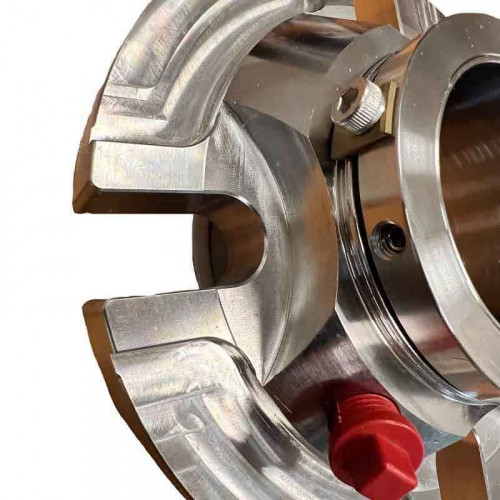

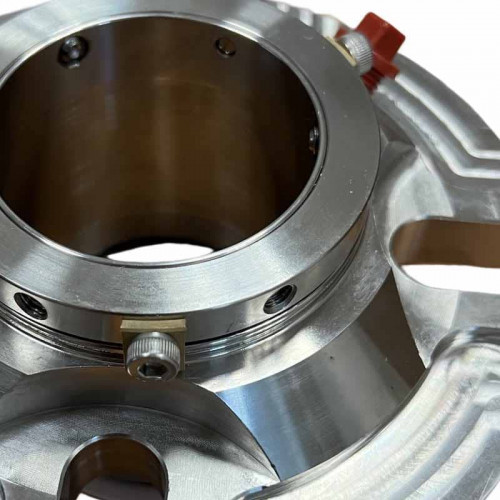

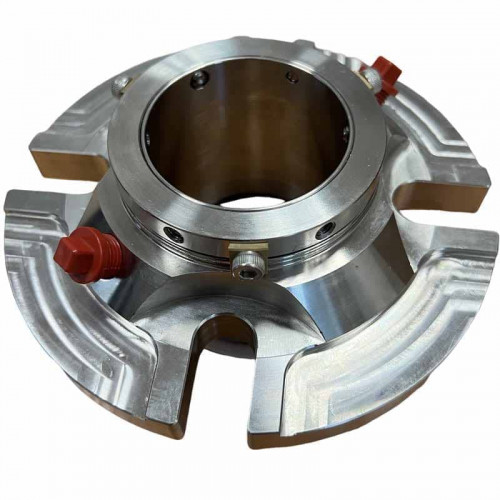

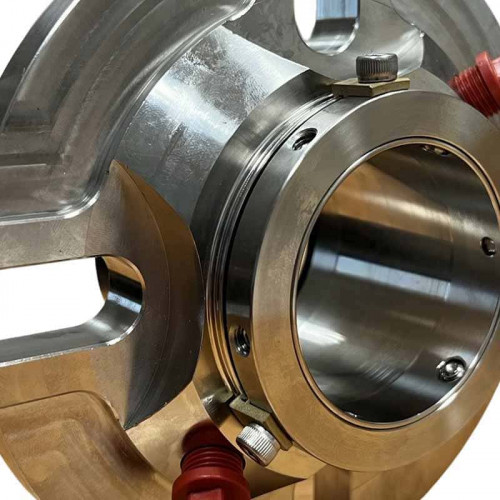

Cartridge seal for pump R-CSM 50, SIC/SIC, VITON, 304

Cartridge seal R-CSM - single, independent of the direction of shaft rotation, friction pair hydraulically relieved. Application: for mixers, agitators, reactors, both horizontal and vertical, for sealing vaporous media. The design allows to compensate for large radial runout of the shaft (displacement up to 1.5 mm is allowed) and can be used for long cantilever shafts. When choosing appropriate materials, it can be used in chemically aggressive environments. The seal is single, independent of the direction of shaft rotation, friction pair hydraulically relieved. Appropriate channels are provided for the supply and drain of the coolant. Type: AESSEAL CSM™ Used with API 2, API 32 strapping plans Pressure: ≤ 2.1 MPa Velocity: ≤ 20 m/s Temperature: -30C ~ + 220C Moving ring (SiC / CAR / TC) Stationary ring (SiC / TC) Secondary seal (VlTON / PTFE) Other parts (SUS304 / SUS316 / Titanium / Hastelloy-C)
