Cartridge seal for pump R-CURC 2.3/8, SIC/SIC, VITON, 316L
Cartridge seal for pump R-CURC 2.3/8, SIC/SIC, VITON, 316L
Cartridge seal for pump R-CURC 2.3/8, SIC/SIC, VITON, 316L
Cartridge seal for pump R-CURC 2.3/8, SIC/SIC, VITON, 316L
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Pressure:
2.3 MPa
Operating temperature:
-20°C +200°C
Rotation velocity:
20 m/s
Seal type:
R-CURC
Stationary and rotating face:
SIC/SIC
Material of metal part:
AISI 316L
See all
Categories
Favorite
Compare
Products from the same category
Cartridge seal for pump R-CURC 2.1/4, SIC/SIC, VITON, 316L
Pre-order only
$1,736
$1,828
-5%
Cartridge seal for pump R-CURC 2.1/8, SIC/SIC, VITON, 316L
Pre-order only
$1,640
$1,726
-5%
Cartridge seal for pump R-CURC 2.3/4, SIC/SIC, VITON, 316L
Pre-order only
$2,122
$2,234
-5%
Cartridge mechanical seal R-CURC 2.5/8, SIC/SIC, VITON, 316L
Pre-order only
$2,025
$2,132
-5%
Cartridge seal for pump R-CURC 2.7/8, SIC/SIC, VITON, 316L
Pre-order only
$2,218
$2,335
-5%
Cartridge seal for pump R-CURC 3, SIC/SIC, VITON, 316L
Pre-order only
$2,315
$2,437
-5%
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Cartridge seal for pump R-CURC 2.3/8, SIC/SIC, VITON, 316L
Producer | BTS Engineering |
Pressure | 2.3 MPa |
Operating temperature | -20°C +200°C |
Rotation velocity | 20 m/s |
Seal type | R-CURC |
Stationary and rotating face | SIC/SIC |
Material of metal part | AISI 316L |
Rubber type | VITON |
Shaft diameter | 2.3/8" |
Analogue for | Aesseal CURC |
Gross weight, kg | 0.5 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 6,5 |
Description Cartridge seal for pump R-CURC 2.3/8, SIC/SIC, VITON, 316L

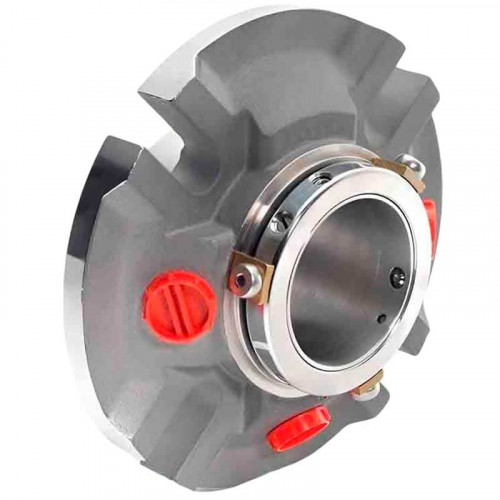

R-CURC – single cartridge seal, hydraulically unloaded, with a spring-loaded rotating part, independent of the direction of shaft rotation. The design includes: graphite throttle ring, channels for supplying and draining coolant, springs that do not contact the product. The following seal modifications are available: - R-CRCO – with built-in lip seal; - R-CURE – with auxiliary external friction pair. Type: AESSEAL CURC, AESSEAL CRCO, AESSEAL CURE.
