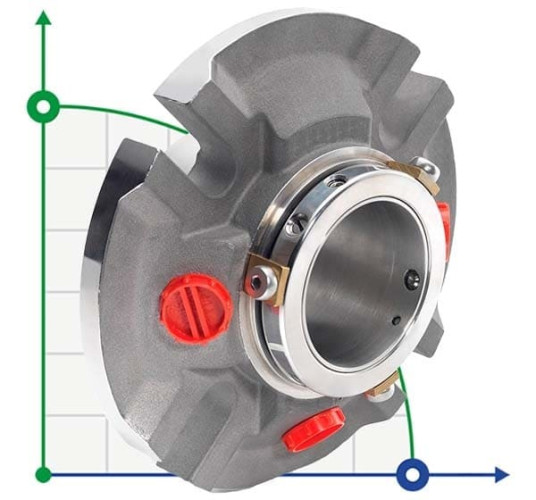

Cartridge seal R-CURC 4.3/8, SIC/SIC, VITON, 316L
Cartridge seal R-CURC 4.3/8, SIC/SIC, VITON, 316L
Cartridge seal R-CURC 4.3/8, SIC/SIC, VITON, 316L
Cartridge seal R-CURC 4.3/8, SIC/SIC, VITON, 316L
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
2.3 MPa
Operating temperature:
-20°C +200°C
Rotation velocity:
20 m/s
Seal type:
R-CURC
Shaft diameter:
4.3/8
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Cartridge seal R-CURC 4.1/4, SIC/SIC, VITON, 316L
Pre-order only
$3,834.39
Cartridge seal R-CURC 4.1/8, SIC/SIC, VITON, 316L
Pre-order only
$3,721.60
Cartridge seal R-CURC 4.3/4, SIC/SIC, VITON, 316L
Pre-order only
$4,285.50
Cartridge seal R-CURC 4.5/8, SIC/SIC, VITON, 316L
Pre-order only
$4,172.72
Cartridge seal R-CURC 4.7/8, SIC/SIC, VITON, 316L
Pre-order only
$4,398.24
Cartridge seal R-CURC 5, SIC/SIC, VITON, 316L
Pre-order only
$4,511.02
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Cartridge seal R-CURC 4.3/8, SIC/SIC, VITON, 316L
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 2.3 MPa |
Operating temperature | -20°C +200°C |
Rotation velocity | 20 m/s |
Seal type | R-CURC |
Shaft diameter | 4.3/8 |
Rubber type | VITON |
Material of metal part | 316L |
Analogue for | Aesseal CURC |
Description Cartridge seal R-CURC 4.3/8, SIC/SIC, VITON, 316L
R-CURC is a single cartridge seal, hydraulically unloaded, with a spring-loaded rotating part, independent of the direction of rotation of the shaft. The design includes: a graphite throttle ring, channels for supplying and draining the cooling liquid, springs that do not come into contact with the product. The following seal modifications are available:
- R-CRCO – with a built-in cuff seal;
- R-CURE – with auxiliary external friction pair.
Type: AESSEAL CURC, AESSEAL CRCO, AESSEAL CURE.
Documentation Cartridge seal R-CURC 4.3/8, SIC/SIC, VITON, 316L
Download instructions, catalog for Cartridge seal R-CURC 4.3/8, SIC/SIC, VITON, 316L
