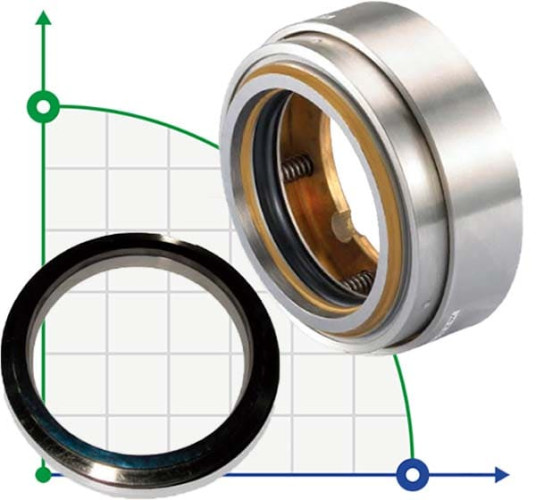

Mechanical seal Flygt R-FL.58UR 60, D, TC/TC, VITON, 304
Mechanical seal Flygt R-FL.58UR 60, D, TC/TC, VITON, 304
Mechanical seal Flygt R-FL.58UR 60, D, TC/TC, VITON, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
TC/TC
Subtype:
D
Pressure:
1.7 MPa
Operating temperature:
-20°C + 150°C
Rotation velocity:
10 m/s
Seal type:
R-FL.58UR
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal Flygt R-FL.58UR 60, C, TC/TC, VITON, 304
Pre-order only
$1,096.74
Mechanical seal Flygt R-FL.58UR 90, TC/TC, VITON, 304
Pre-order only
$1,495.50
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal Flygt R-FL.58UR 60, D, TC/TC, VITON, 304
Producer | BTS Engineering |
Stationary and rotating face | TC/TC |
Subtype | D |
Pressure | 1.7 MPa |
Operating temperature | -20°C + 150°C |
Rotation velocity | 10 m/s |
Seal type | R-FL.58UR |
Shaft diameter | 60 |
Rubber type | VITON |
Material of metal part | 304 |
Application | Flygt |

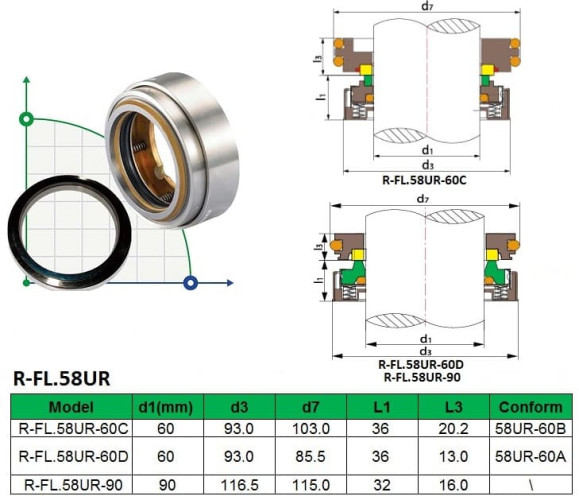

Description Mechanical seal Flygt R-FL.58UR 60, D, TC/TC, VITON, 304
The mechanical seal of the Flygt R-FL.58UR pump is used in FLYGT pumps as part of a tandem.
R-FL.58UR - 60D – FLYGT 600, 2250, 2290, 2400, 3170, 3200, 3201, 4670, 4680, 5550, 7045.
R-FL.58UR – 60C – FLYGT 2250, 2290, 3200.
R-FL.58UR - 90 – FLYGT 605, 615, 665, 670, 680, 705, 715, 720, 721, 735, 745, 760, 765, 770, 775, 820, 840, 841, 860, 880, 881, 900, 3230, 3300-091, 3300-181, 3300-280, 3300-980, 3301-180, 3305, 3310, 3311, 3312, 3350, 3351, 3355, 3356, 3357, 3400, 3500, 3501, 3530, 3531, 3600, 3601, 3602, 5560, 7050, 7051, 7055, 7060, 7061, 7076, 7080, 7081, 7101, 7115, 7556, 7570, 7585.
Temperature: -20°~150°
Pressure: ≤1.7 MPa
Speed: ≤10 m/sec
Materials
• Rotating Ring: CAR/TC
• Fixed ring: TC
* Bellows: NBR/ VITON/ PTFE
• Spring: SS304 / SS316.
• Metal parts: SS304 / SS316.
Documentation Mechanical seal Flygt R-FL.58UR 60, D, TC/TC, VITON, 304
Download instructions, catalog for Mechanical seal Flygt R-FL.58UR 60, D, TC/TC, VITON, 304
