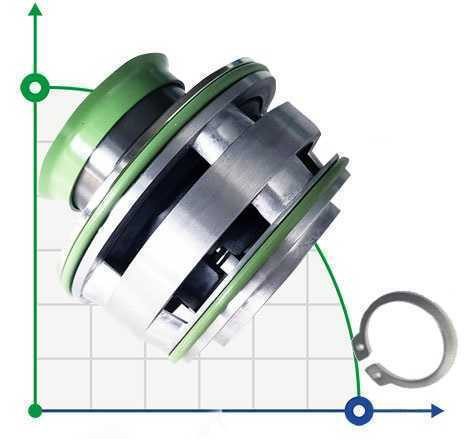

Mechanical seal FLYGT R-FL.XE 25, TC/TC/TC/TC, VITON, 304/All

Characteristics
Producer:
BTS Engineering
Stationary and rotating face:
TC/TC/TC/TC
Pressure:
1.2 MPa
Operating temperature:
-30°C +180°C
Rotation velocity:
10 m/s
Seal type:
R-FL.XE
Shaft diameter:
25
See all
Ukraine: In stock
Poland: Out of stock
Germany: Out of stock
Code: 17611_25__TC/TC/TC/TC__VITON__304/All
$927.15 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Mechanical seal FLYGT R-FL.XE 25, TC/TC/TC/TC, VITON, 304/All
Producer
BTS Engineering
Stationary and rotating face
TC/TC/TC/TC
Pressure
1.2 MPa
Operating temperature
-30°C +180°C
Rotation velocity
10 m/s
Seal type
R-FL.XE
Shaft diameter
25
Rubber type
VITON
Material of metal part
304/All
Application
Flygt
Analogue for
Plug-in Seals™, Vulcan 06X
Gross weight, kg
0.25
Length of transport packing, cm
8
Width of transport packing, cm
8
Height of transport packing, cm
10
Description Mechanical seal FLYGT R-FL.XE 25, TC/TC/TC/TC, VITON, 304/All
R-FL.XE mechanical seal is used at temperatures ranging from -30 to + 180°C, a pressure up to 1 to 2 MPa and the rotation speed to 10 m/s. Analogous to Vulcan Seals Type 06X. Can be used in pumps and mixers Flygt, Grindex the following models: 1520, 2610, 2620, 2630, 2640, 4610 & 4620, 660, 4630 & 4640, 3202, 4670, 4680, 5100,300, 5100,310, 5150,300 & 5150,310, 3171, 4650, 4660, 5100,250 , 5100.251, 5100.260 & 5100.261, 2670, 3153, 5100,210, 5,100, 211, & 5100,220 5100,221, 2670, 3153, 5100,210, 5100, 211 5100,220 5100,221 & et al. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal FLYGT R-FL.XE 25, TC/TC/TC/TC, VITON, 304/All
Video Mechanical seal FLYGT R-FL.XE 25, TC/TC/TC/TC, VITON, 304/All
