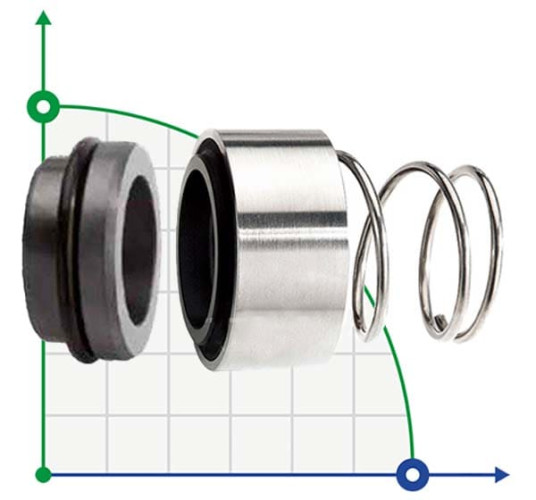

Mechanical seal R-H12N 40, CAR/SIC, EPDM, 304, G9
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
CAR/SIC
Pressure:
2.5 MPa
Operating temperature:
-40°C +220°C
Rotation velocity:
15 m/s
Seal type:
R-H12N
Type of conta-ring:
G9
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-H12N 35, CAR/SIC, EPDM, 304, G9
Pre-order only
$167.73
Mechanical seal R-H12N 35, SIC/SIC, VITON, 304, G9
In stock
$201.26
Mechanical seal R-H12N 38, CAR/SIC, EPDM, 304, G9
Pre-order only
$182.38
Mechanical seal R-H12N 43, CAR/SIC, EPDM, 304, G9
Pre-order only
$206.35
Mechanical seal R-H12N 45, CAR/SIC, EPDM, 304, G9
Pre-order only
$215.65
Mechanical seal R-H12N 48, CAR/SIC, EPDM, 304, G9
Pre-order only
$230.32
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-H12N 40, CAR/SIC, EPDM, 304, G9
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Pressure | 2.5 MPa |
Operating temperature | -40°C +220°C |
Rotation velocity | 15 m/s |
Seal type | R-H12N |
Type of conta-ring | G9 |
Shaft diameter | 40 |
Rubber type | EPDM |
Material of metal part | 304 |
Application | Pentax, KSB |
Analogue for | Burgmann H12N/H17GN, AESSEAL T01DBU, AESSEAL T01DB |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-H12N 40, CAR/SIC, EPDM, 304, G9
Mechanical seal R-H12N used at temperatures from -40 to + 120°C, a pressure up to 2 MPa and 5 rotation speed to 15 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-H12N 40, CAR/SIC, EPDM, 304, G9
Download instructions, catalog for Mechanical seal R-H12N 40, CAR/SIC, EPDM, 304, G9
Video Mechanical seal R-H12N 40, CAR/SIC, EPDM, 304, G9
Mechanical seal R-H12N 40, CAR/SIC, EPDM, 304, G9 reviews
