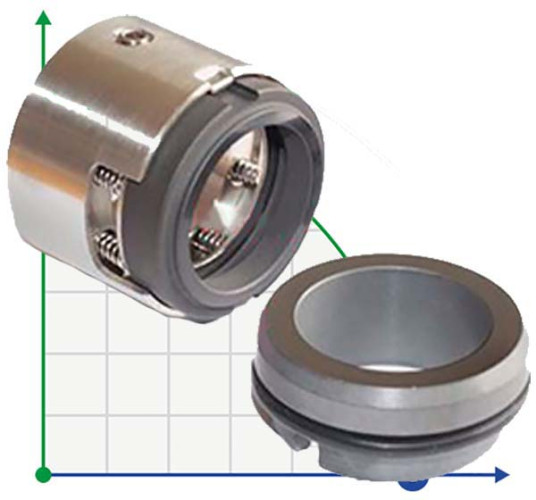

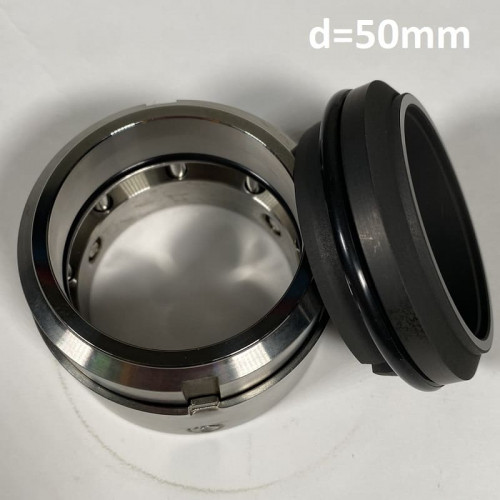

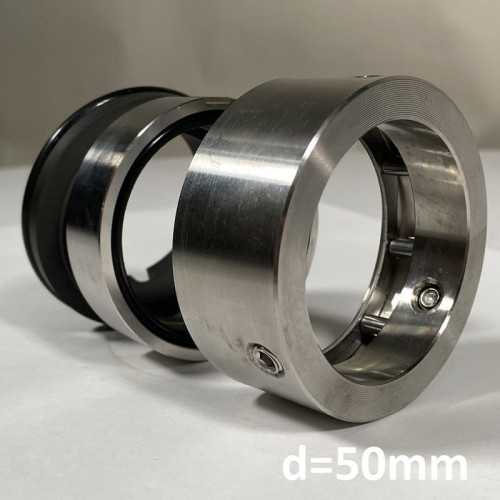

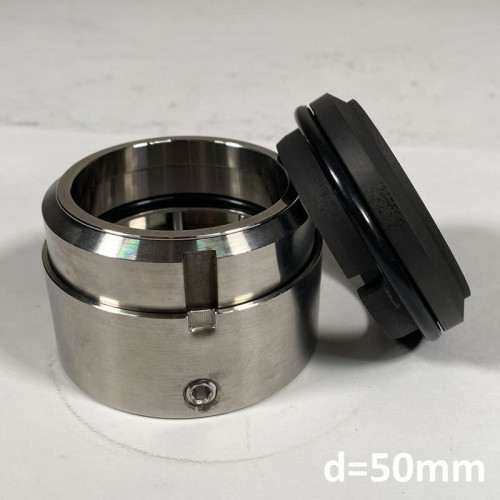

Mechanical shaft seal R-H75 53, CAR/SIC, EPDM, 304, G9
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
CAR/SIC
Pressure:
2.5 MPa
Operating temperature:
-40°C +220°C
Rotation velocity:
20 m/s
Seal type:
R-H75
Type of conta-ring:
G9
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Mechanical shaft seal R-H75 53, CAR/SIC, EPDM, 304, G9
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Pressure | 2.5 MPa |
Operating temperature | -40°C +220°C |
Rotation velocity | 20 m/s |
Seal type | R-H75 |
Type of conta-ring | G9 |
Shaft diameter | 53 |
Rubber type | EPDM |
Material of metal part | 304 |
Application | LOWARA |
Analogue for | Burgmann H75 |
Description Mechanical shaft seal R-H75 53, CAR/SIC, EPDM, 304, G9
Mechanical seal R-H75 single, unloaded, independent of the direction of rotation of the shaft. The dimensions correspond to R-H7N, but with a multi-spring unit in a protective sleeve. For shaft diameters from 28 to 200 mm.
Analogs: AESSEALW07DMBU / W07DMBU, BurgmannH75.
Possible combinations of a cooling counter ring (G115), with a continuous movable ring of carbon graphite (for use in volatile hydrocarbons H 75 VN, in accordance with the requirements for seals with low emissions)
Temperature: -50 ° C ~ 220 ° C
Pressure: ≤2.5 MPa
Speed: ≤20 m / sec
Materials:
1 Movable ring: SiC / TC / Carbon / SS.
2 Fixed ring: Carbon / SiC / TC.
3 Bellows: VITON / EPDM / FEP.
4 Spring: SS304 / SS316.
5 Metal parts: SS304 / SS316
Face consolidation for the pump Wilo, K, KM, X, AX, AHP, AX, Calpeda, DAB, Ebara, Grundfos, for the pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for the pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for the pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
