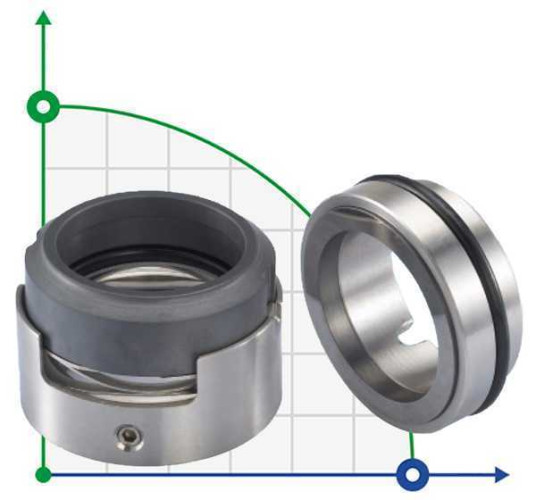

Mechanical seal R-H7N 53, SIC/SIC, VITON, 304, G9
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
2.5 MPa
Operating temperature:
-50°C +220°C
Rotation velocity:
20 m/s
Seal type:
R-H7N
Type of conta-ring:
G9
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Mechanical seal R-H7N 53, SIC/SIC, VITON, 304, G9
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 2.5 MPa |
Operating temperature | -50°C +220°C |
Rotation velocity | 20 m/s |
Seal type | R-H7N |
Type of conta-ring | G9 |
Shaft diameter | 53 |
Rubber type | VITON |
Material of metal part | 304 |
Application | Sterling (SIHI), LOWARA, FRISTAM |
Analogue for | Vulcan 1678, LIDERING LWS10B, Latty B68, Burgmann H7N, AESSEAL W07DMBU, AESSEAL W07DMB |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-H7N 53, SIC/SIC, VITON, 304, G9

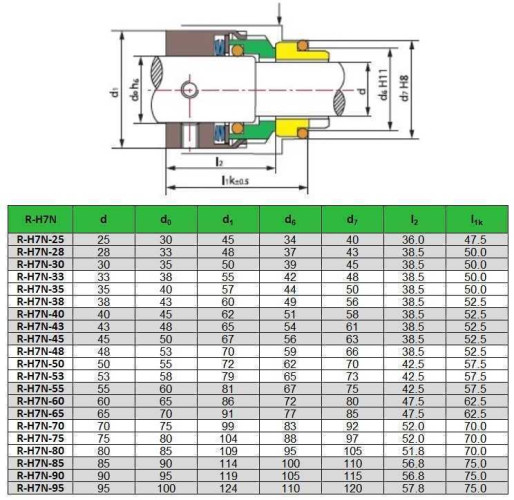

Mechanical Face Seal R-H7N - Single, balanced, with an arbitrary direction of rotation.
Analogues: AESSEAL W07DMBU / W07DMBU, Burgmann H7N.
Combinations of the counter ring with cooling (G115), a multi-spring unit in the protective sleeve (H 75), with a continuous movable ring of carbon graphite (to be used in an environment of volatile hydrocarbons, H 75 VN), with a coil spring (H76), with integrated impeller ( H75F). Temperature: -50°С ~ 220°С
Pressure: ≤2.5 MPa
Speed: ≤20 m/s
materials:
1- rotating ring: SiC / TC / Carbon.
2- Stationary Ring: Carbon / SiC / TC.
3- bellows: VITON / FEP.
4- Spring: SS304 / SS316.
5- Metal parts: SS304 / SS316
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
