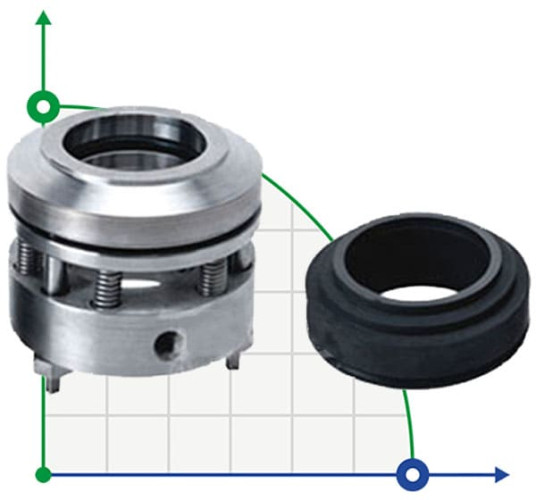

Multi-spring shaft seals R-HG202 40, SIC/CAR, VITON, 304
Multi-spring shaft seals R-HG202 40, SIC/CAR, VITON, 304
Multi-spring shaft seals R-HG202 40, SIC/CAR, VITON, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/CAR
Pressure:
0,25 MPa
Rate of turn, rpm:
500
Operating temperature:
-40°C +200°C
Seal type:
R-HG202
Shaft diameter:
40
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Multi-spring shaft seals R-HG202 110, SIC/CAR, VITON, 304
Pre-order only
$2,108.60
Multi-spring shaft seals R-HG202 30, SIC/CAR, VITON, 304
Pre-order only
$670.88
Multi-spring shaft seals R-HG202 50, SIC/CAR, VITON, 304
Pre-order only
$1,118.16
Multi-spring shaft seals R-HG202 65, SIC/CAR, VITON, 304
Pre-order only
$1,464.36
Multi-spring shaft seals R-HG202 80, SIC/CAR, VITON, 304
Pre-order only
$1,533.44
Multi-spring shaft seals R-HG202 95, SIC/CAR, VITON, 304
Pre-order only
$1,821.09
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Multi-spring shaft seals R-HG202 40, SIC/CAR, VITON, 304
Producer | BTS Engineering |
Stationary and rotating face | SIC/CAR |
Pressure | 0,25 MPa |
Rate of turn, rpm | 500 |
Operating temperature | -40°C +200°C |
Seal type | R-HG202 |
Shaft diameter | 40 |
Rubber type | VITON |
Material of metal part | 304 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |

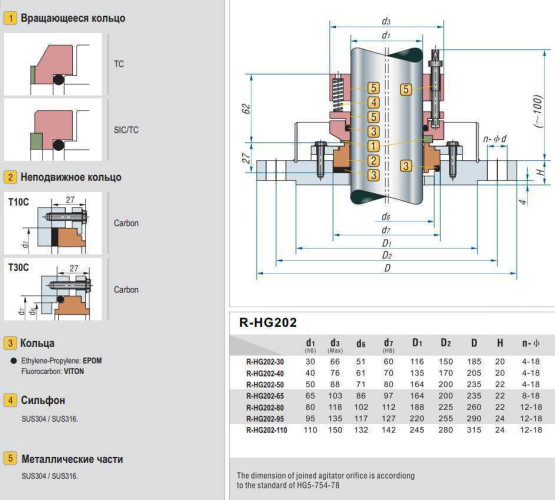

Description Multi-spring shaft seals R-HG202 40, SIC/CAR, VITON, 304
R-HG202 mechanical seal is used at temperatures ranging from -40 to + 200°C, a pressure of 0 to 25 MPa and a speed of 500 rev/min.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Multi-spring shaft seals R-HG202 40, SIC/CAR, VITON, 304
Download instructions, catalog for Multi-spring shaft seals R-HG202 40, SIC/CAR, VITON, 304
