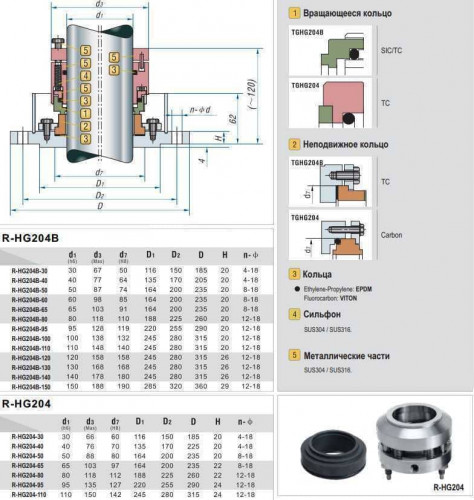

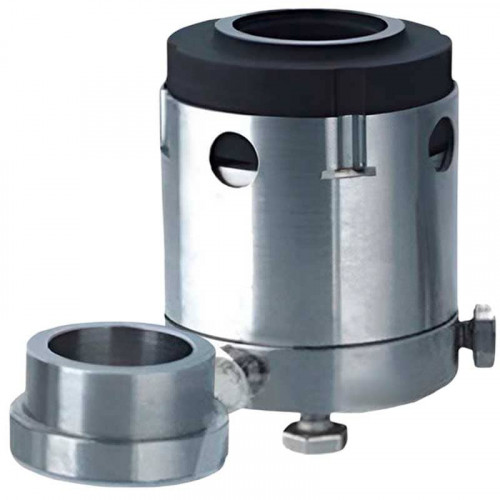

Mechanical seal R-HG204B 40, SIC/CAR, VITON, 316
Mechanical seal R-HG204B 40, SIC/CAR, VITON, 316
Mechanical seal R-HG204B 40, SIC/CAR, VITON, 316
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Pressure:
0,6 MPa
Rate of turn, rpm:
500
Operating temperature:
-40°C +200°C
Seal type:
R-HG204B
Outer diameter of the fixed ring, mm:
64
Stationary and rotating face:
SIC/CAR
See all
Categories
Favorite
Compare
Products from the same category
Multi-spring Mechanical shaft seal R-HG202 95, SIC/CAR, VITON, 316
Pre-order only
$682
$718
-5%
Multi-spring pump shaft seal R-HG202 110, SIC/CAR, VITON, 316
Pre-order only
$789
$831
-5%
Mechanical seal R-HG204B 30, SIC/CAR, VITON, 316
Pre-order only
$234
$246
-5%
Mechanical seal R-HG204B 50, SIC/CAR, VITON, 316
Pre-order only
$390
$410
-5%
Mechanical seal R-HG204B 60, SIC/CAR, VITON, 316
Pre-order only
$467
$492
-5%
Mechanical seal R-HG204B 65, SIC/CAR, VITON, 316
Pre-order only
$507
$534
-5%
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-HG204B 40, SIC/CAR, VITON, 316
Producer | BTS Engineering |
Pressure | 0,6 MPa |
Rate of turn, rpm | 500 |
Operating temperature | -40°C +200°C |
Seal type | R-HG204B |
Outer diameter of the fixed ring, mm | 64 |
Stationary and rotating face | SIC/CAR |
Material of metal part | AISI 316 stainless steel |
Rubber type | VITON |
Shaft diameter | 40 |
Gross weight, kg | 0.2 |
Length of transport packing, cm | 6,5 |
Width of transport packing, cm | 6,5 |
Height of transport packing, cm | 6,5 |
Description Mechanical seal R-HG204B 40, SIC/CAR, VITON, 316
Mechanical seal R-HG204 is used at temperatures from -20 to + 200°C, with a pressure of up to 0.6 MPa and a rotation speed of up to 500 rpm. Usually used for sealing the shaft of agitators, blenders, mixers, dispersers, cavitators, etc. Mechanical seal for Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pumps, for KSB pumps, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam pumps, for SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK pumps, for Tuchenhagen pumps, ALFA LAVAL, Donjoy, Mission Magnum.
