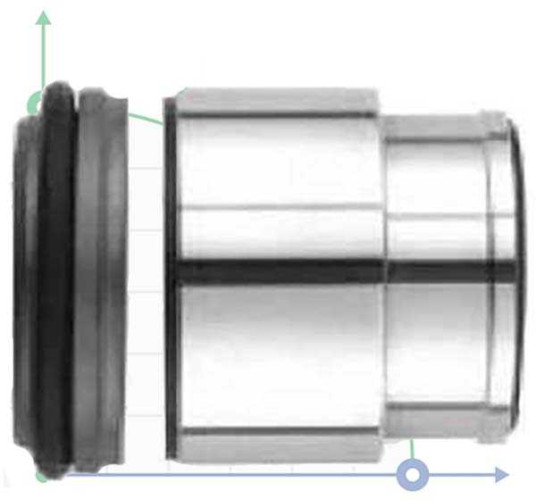

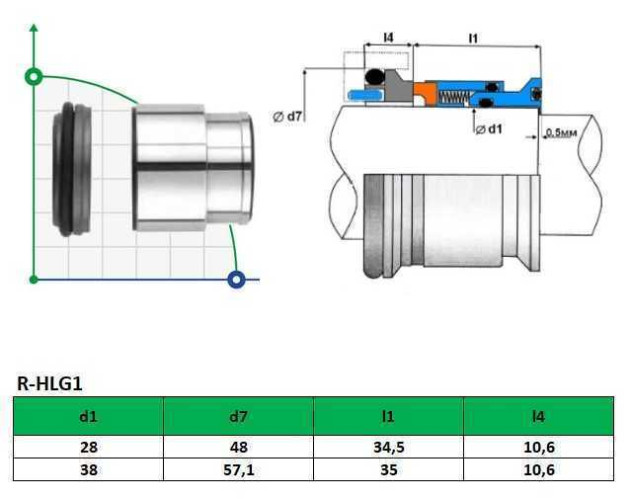

Mechanical seal Hilge R-HLG1 38, SIC/SIC, VITON, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Seal type:
R-HLG1
Shaft diameter:
38
Rubber type:
VITON
Material of metal part:
304
Application:
Hilge
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal Hilge R-HLG1 28, SIC/SIC, VITON, 304
In stock
$127.27
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal Hilge R-HLG1 38, SIC/SIC, VITON, 304
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Seal type | R-HLG1 |
Shaft diameter | 38 |
Rubber type | VITON |
Material of metal part | 304 |
Application | Hilge |
Analogue for | AESSEAL M010S3, Burgmann SHJ97, Roten EHS3, Vulcan 1662, Vulcan 1663S |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal Hilge R-HLG1 38, SIC/SIC, VITON, 304
Mechanical seal R-HLG1 used in pumps Grundfos HILGE:
Euro Hygia I, Hilge Euro Hygia II, Hilge Contra I, Hilge Contra II, Hilge Contra Adapta, Durietta,
Hilge Contra Adapta Super, Hilge Contra Adapta-Bloc, Hilge Contra Adapta-Bloc, Super Hilge Hygiana Bloc, Hilge Hygiana
Bloc Super, Hilge Higya-Kholge Sipla, Hilge Maxa / Maxana, Hilge Novalobe.
Standard size shaft 28 and 38 mm.
Analogues: Burgmann SHJ97, Roten EHS3, Aesseal M010S3, BT2V03 for Hilge pumps
HILGE-3A1-001-19-aeEO3, HILGE-3A1-001-19-kiEO3, HILGE-3A1-BS3-19-kiEO1, HILGE-3A1-001-28-aeEO3, HILGE-3A1-001-28-kiEO3, HILGE-3A1-BS2-28-aiEO1, HILGE-3A1-BS2-28-aiVO1, HILGE-3A1-BS3-28-aiEO1, HilGE-3A1-BS2-38-aiEO1
The material of friction pairs:
carbon graphite (CAR)
ceramics (CER)
silicon carbide (SIC)
Material bellows:
NBR (≈100°C)
EPDM (≈150°C)
VITON (≈180°C)
