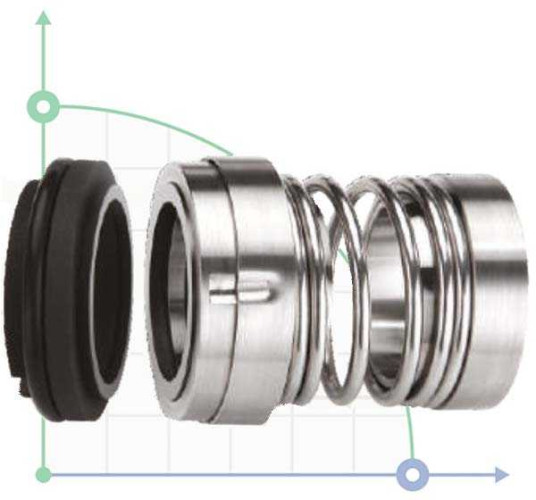

Mechanical seal R-JB103 100, SIC/CAR, VITON, 304, T5С
Mechanical seal R-JB103 100, SIC/CAR, VITON, 304, T5С
Mechanical seal R-JB103 100, SIC/CAR, VITON, 304, T5С
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/CAR
Pressure:
0,8 MPa
Operating temperature:
-20°C + 80°C
Rotation velocity:
15 m/s
Seal type:
R-JB103
Type of conta-ring:
T5С
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-JB103 110, SIC/CAR, VITON, 304, T5С
Pre-order only
$1,371.07
Mechanical seal R-JB103 120, SIC/CAR, VITON, 304, T5С
Pre-order only
$1,494.90
Mechanical seal R-JB103 16, SIC/CAR, VITON, 304, T5С
Pre-order only
$79.88
Mechanical seal R-JB103 85, SIC/CAR, VITON, 304, T5С
Pre-order only
$733.49
Mechanical seal R-JB103 90, SIC/CAR, VITON, 304, T5С
Pre-order only
$862.60
Mechanical seal R-JB103 95, SIC/CAR, VITON, 304, T5С
Pre-order only
$1,092.89
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-JB103 100, SIC/CAR, VITON, 304, T5С
Producer | BTS Engineering |
Stationary and rotating face | SIC/CAR |
Pressure | 0,8 MPa |
Operating temperature | -20°C + 80°C |
Rotation velocity | 15 m/s |
Seal type | R-JB103 |
Type of conta-ring | T5С |
Shaft diameter | 100 |
Rubber type | VITON |
Material of metal part | 304 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-JB103 100, SIC/CAR, VITON, 304, T5С
Mechanical seal R-JB103 used at temperatures from -40 to + 120°C, a pressure of 0 to 8 MPa and the rotation speed to 15 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-JB103 100, SIC/CAR, VITON, 304, T5С
Download instructions, catalog for Mechanical seal R-JB103 100, SIC/CAR, VITON, 304, T5С
