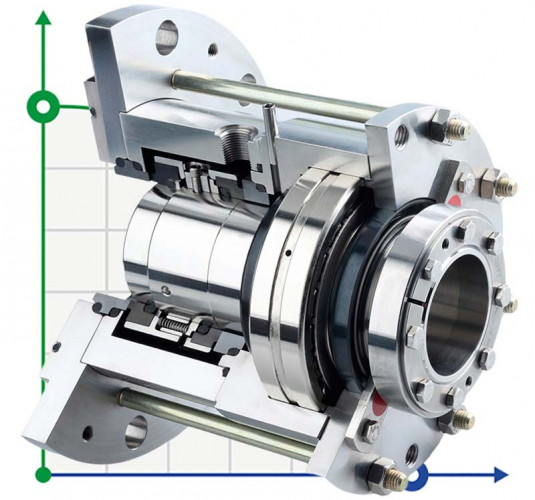

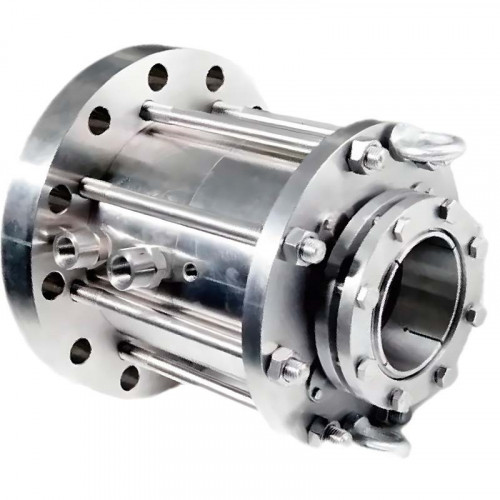

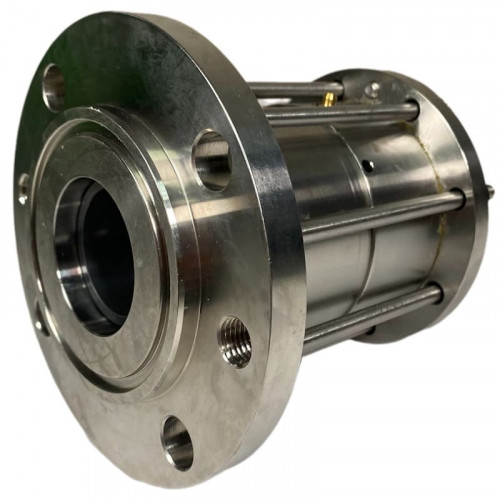

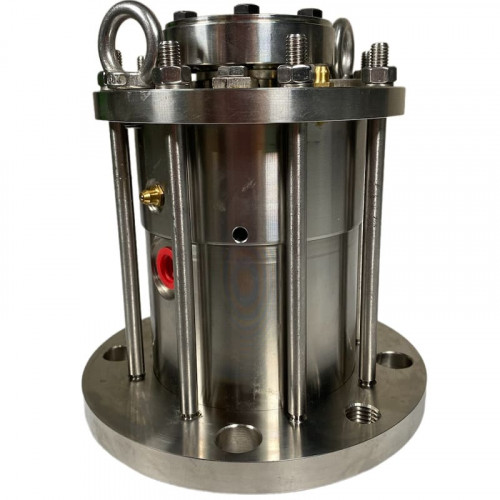

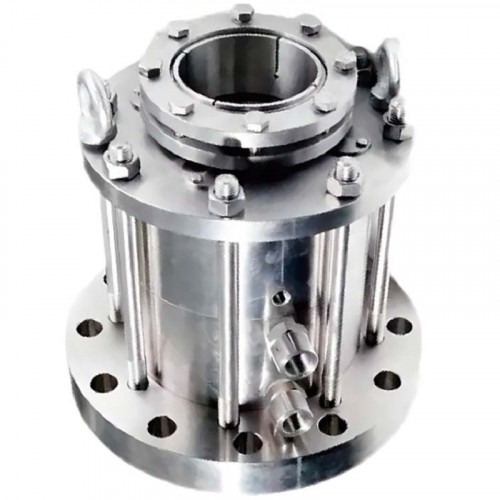

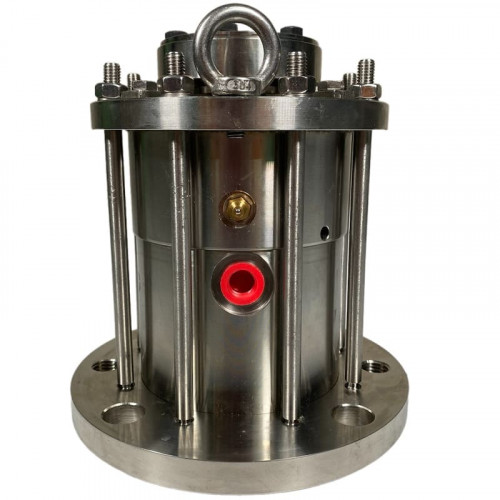

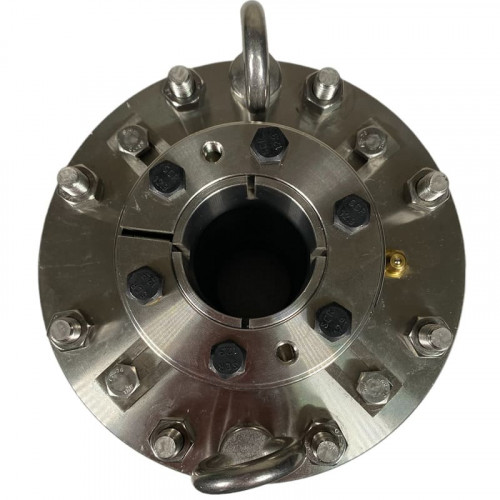

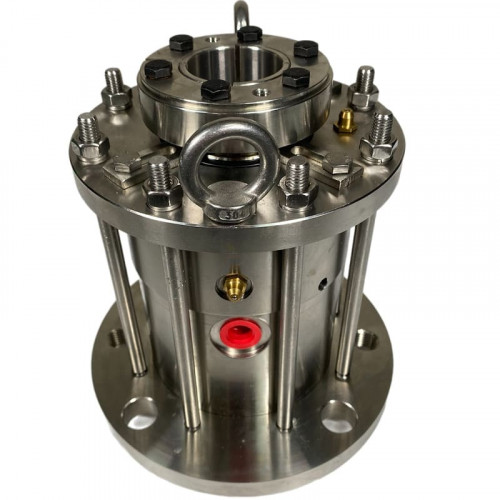

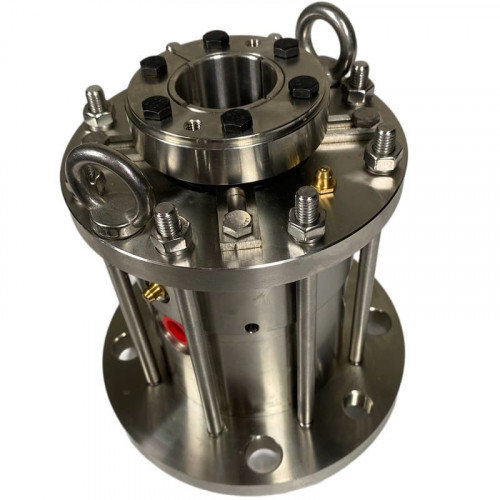

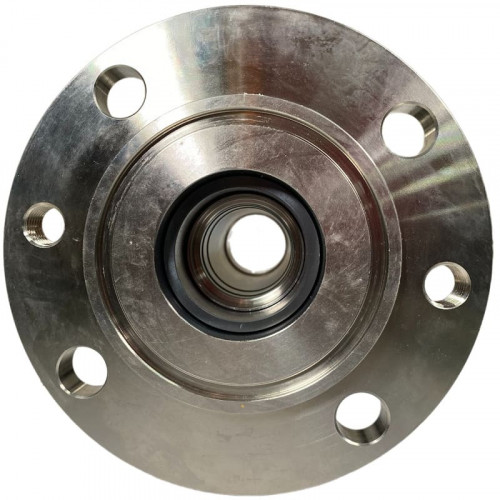

Cartridge seal for stirrer R-M481KL-D 220, SIC/SIC/CAR/SIC/VITON, 304
Cartridge seal for stirrer R-M481KL-D 220, SIC/SIC/CAR/SIC/VITON, 304
Cartridge seal for stirrer R-M481KL-D 220, SIC/SIC/CAR/SIC/VITON, 304
Cartridge seal for stirrer R-M481KL-D 220, SIC/SIC/CAR/SIC/VITON, 304
Cartridge seal for stirrer R-M481KL-D 220, SIC/SIC/CAR/SIC/VITON, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Pressure:
1,6 mPa
Operating temperature:
-40°C +200°C
Rotation velocity:
5 m/s
Seal type:
R-M481KL-D
Stationary and rotating face:
SIC/SIC/CAR/SIC
Diameter, mm:
220
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Double cartridge seal for stirrer R-M481KL-D 50, SIC/SIC/CAR/SIC/VITON, 304
Pre-order only
$3,841.53
Double cartridge seal for stirrer R-M481KL-D 60, SIC/SIC/CAR/SIC/VITON, 304
Pre-order only
$4,609.84
Double cartridge seal for stirrer R-M481KL-D 160, SIC/SIC/CAR/SIC/VITON, 304
Pre-order only
$11,063.59
Double cartridge seal for stirrer R-M481KL-D 180, SIC/SIC/CAR/SIC/VITON, 304
Pre-order only
$12,446.54
Double cartridge seal for stirrer R-M481KL-D 200, SIC/SIC/CAR/SIC/VITON, 304
Pre-order only
$13,829.50
Double cartridge seal for stirrer R-M481KL-D 40, SIC/SIC/CAR/SIC/VITON, 304
Pre-order only
$3,317.20
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Cartridge seal for stirrer R-M481KL-D 220, SIC/SIC/CAR/SIC/VITON, 304
Producer | BTS Engineering |
Pressure | 1,6 mPa |
Operating temperature | -40°C +200°C |
Rotation velocity | 5 m/s |
Seal type | R-M481KL-D |
Stationary and rotating face | SIC/SIC/CAR/SIC |
Diameter, mm | 220 |
Material of metal part | AISI 304 stainless steel |
Rubber type | VITON |
Shaft diameter | 220 |
Description Cartridge seal for stirrer R-M481KL-D 220, SIC/SIC/CAR/SIC/VITON, 304
The double cartridge seal R-M481KL-D is designed for top-driven stirrers and reactors. It is shaft-independent, unbalanced and has an integrated floating bearing. It can operate with buffer fluid at a pressure of up to 0.6 MPa as a single seal or under barrier fluid pressure as a double seal, up to 1.6 MPa. Sliding speed up to 5 m/s, operating temperature: -40+200 °C.
Documentation Cartridge seal for stirrer R-M481KL-D 220, SIC/SIC/CAR/SIC/VITON, 304
Download instructions, catalog for Cartridge seal for stirrer R-M481KL-D 220, SIC/SIC/CAR/SIC/VITON, 304
