Pump shaft mechanical seal KSB R-MG1S6 16, SIC/SIC, VITON, 304
Pump shaft mechanical seal KSB R-MG1S6 16, SIC/SIC, VITON, 304
Pump shaft mechanical seal KSB R-MG1S6 16, SIC/SIC, VITON, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
1,6 mPa
Operating temperature:
-20°C + 140°C
Rotation velocity:
10 m/s
Seal type:
R-MG1S6
Shaft diameter:
16
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Pump shaft mechanical seal KSB R-MG1S6 28, CAR/SIC, EPDM, 304
In stock
$53.69
Pump shaft mechanical seal KSB R-MG1S6 10, SIC/SIC, VITON, 304
Pre-order only
$23.47
Pump shaft mechanical seal KSB R-MG1S6 15, SIC/SIC, VITON, 304
Pre-order only
$35.14
Pump shaft mechanical seal KSB R-MG1S6 22, SIC/SIC, VITON, 304
In stock
$51.24
Pump shaft mechanical seal KSB R-MG1S6 28, SIC/SIC, VITON, 304
In stock
$64.44
Pump shaft mechanical seal KSB R-MG1S6 38, SIC/SIC, VITON, 304
Pre-order only
$87.87
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Pump shaft mechanical seal KSB R-MG1S6 16, SIC/SIC, VITON, 304
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 1,6 mPa |
Operating temperature | -20°C + 140°C |
Rotation velocity | 10 m/s |
Seal type | R-MG1S6 |
Shaft diameter | 16 |
Rubber type | VITON |
Material of metal part | 304 |
Application | KSB |
Analogue for | Vulcan 192K, KSB NU028, Flowserve KZN, Burgmann MG1S6, AESSEAL B02K |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Pump shaft mechanical seal KSB R-MG1S6 16, SIC/SIC, VITON, 304

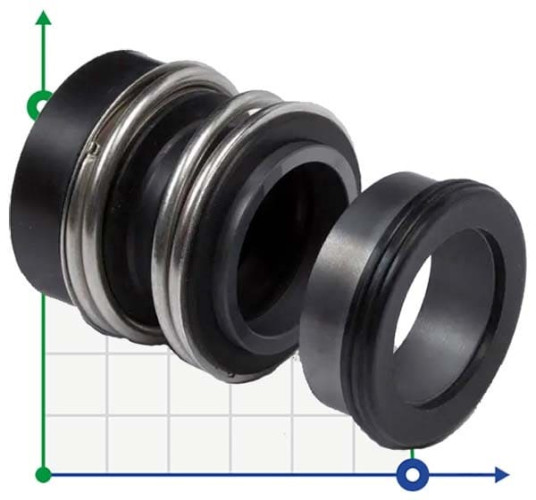

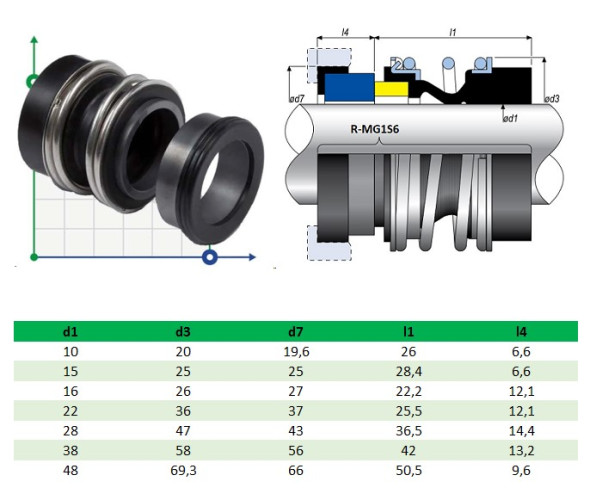

The mechanical shaft seal of the KSB R-MG1S6 pump with a central spring, bellows type, does not depend on the direction of rotation of the shaft. For internal arrangement and operation in low-viscosity liquids with a low content of abrasives.
EN 12756 standards.
It is used in KSB pumps.
Type: Burgmann MG1S6, KSB NU028, DIN KSB-ZN118, NU028SO-1 ZN1181, MG1S6 / 28-G61, AESSEAL B02K, Flowserve KZN, Vulcan 192K.
Temperature: -20°~140°
Pressure: ≤1.6 MPa
Speed: ≤10 m/sec
Materials
• Rotating Ring: CAR/SIC
• Fixed ring: SIC.
• Bellows: NBR/ EPDM/ VITON.
• Spring: SS304 / SS316
• Metal parts: SS304 / SS316.
