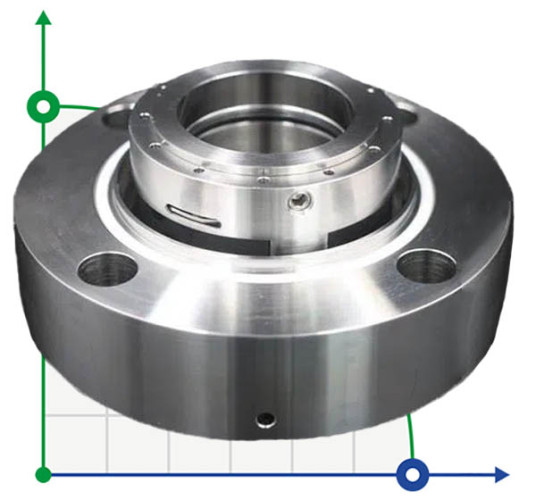

Cartridge seal R-MS 90, CAR/SIC, EPDM, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
CAR/SIC
Pressure:
0,6 MPa
Operating temperature:
-20°C +180°C
Rotation velocity:
2.5 м/сек
Seal type:
R-MS
Shaft diameter:
90
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Cartridge seal R-MS 90, CAR/SIC, EPDM, 304
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Pressure | 0,6 MPa |
Operating temperature | -20°C +180°C |
Rotation velocity | 2.5 м/сек |
Seal type | R-MS |
Shaft diameter | 90 |
Rubber type | EPDM |
Material of metal part | 304 |
Analogue for | Anga MS |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Cartridge seal R-MS 90, CAR/SIC, EPDM, 304
Single mixer seal, for dry running conditions, balanced, independent from the direction of rotation, multi-spring.
The MS seal is designed for sealing shafts of mixers and reactors in which non-aggressive and environmentally safe products are processed, for dry running conditions. It does not require the application of any auxiliary installations.
Type MS mechanical seal has a rotating ring made of special resin impregnated carbon graphite and special design which improve heat dissipation and other working conditions in case of dry running. Auxiliary installations are not necessary. It is designed for mixers, agitators and other equipment with rotating shafts used mainly in chemical, food processing, pharmaceutical and pulp & paper industries, for use with non-aggressive and non-hazardous media. A special dampening device is available to eliminate dry run screech. It can be made of materials that are approved for use in the pharmaceutical and food industries.
Pressure pmax 0,6 MPa
Temperature tmax 180°C
Speed vmax 2,5 m/s
Documentation Cartridge seal R-MS 90, CAR/SIC, EPDM, 304
Download instructions, catalog for Cartridge seal R-MS 90, CAR/SIC, EPDM, 304
