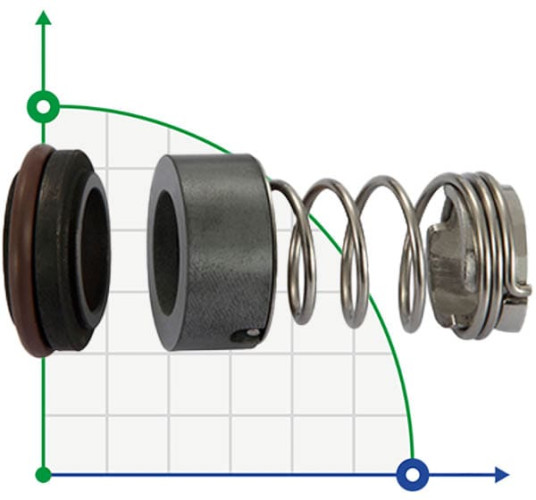

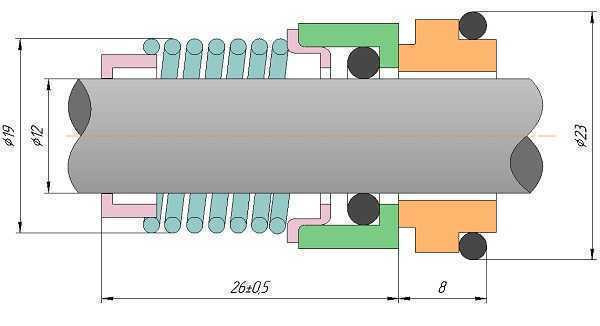

Mechanical seal Grundfos R-706C 12, CAR/SIC, EPDM, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
CAR/SIC
Seal type:
R-706C
Shaft diameter:
12
Rubber type:
EPDM
Material of metal part:
304
Application:
Grundfos
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal Grundfos R-706C 12, SIC/SIC, VITON, 304
In stock
$49.91
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal Grundfos R-706C 12, CAR/SIC, EPDM, 304
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Seal type | R-706C |
Shaft diameter | 12 |
Rubber type | EPDM |
Material of metal part | 304 |
Application | Grundfos |
Analogue for | Grundfos CVBE |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal Grundfos R-706C 12, CAR/SIC, EPDM, 304
Mechanical seal R-706C is used in pumps Grundfos:
- series JP, CH8, CH12, CRK (I) 2, CRK (I);
- SPK1 series, SPK2, SPK4, SPK8;
- CR2 series, CR4.
Standard shaft size: 12 mm.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
