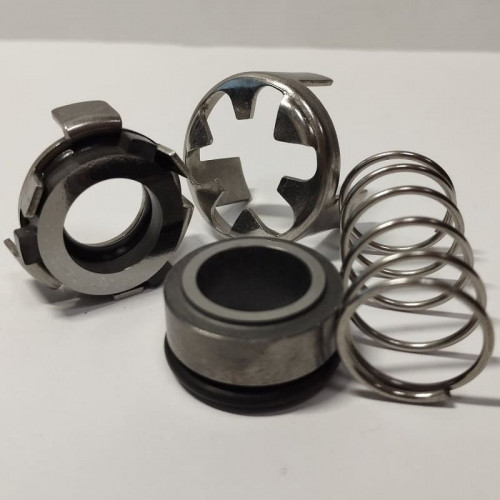

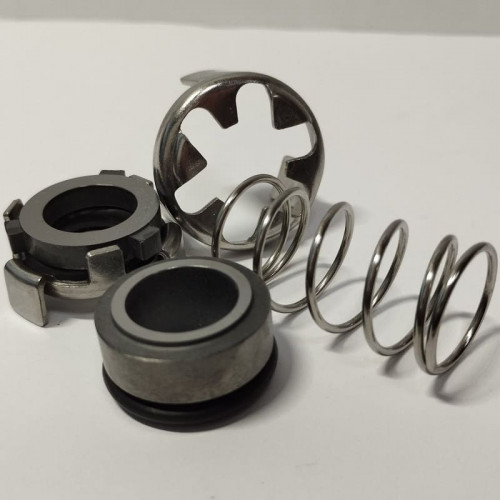

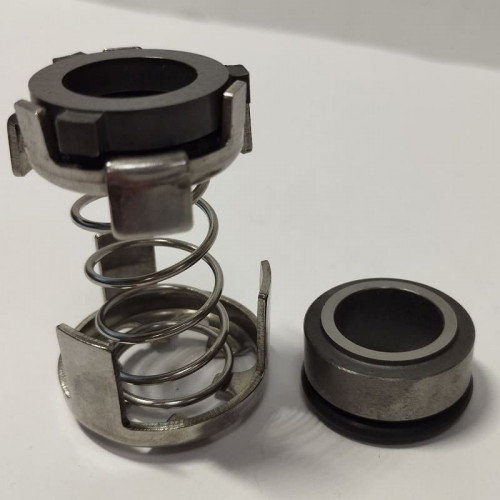

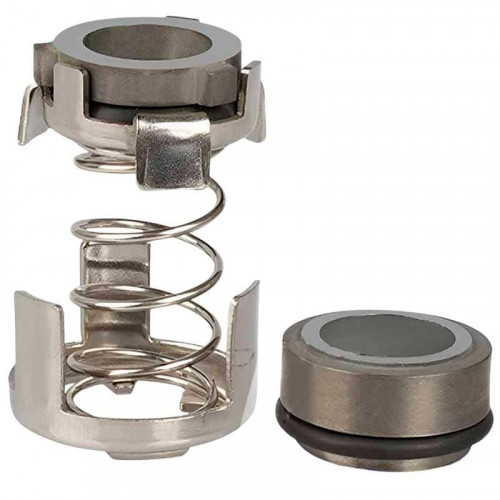

Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT

Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Brand:
BTS Engineering
0 Comment

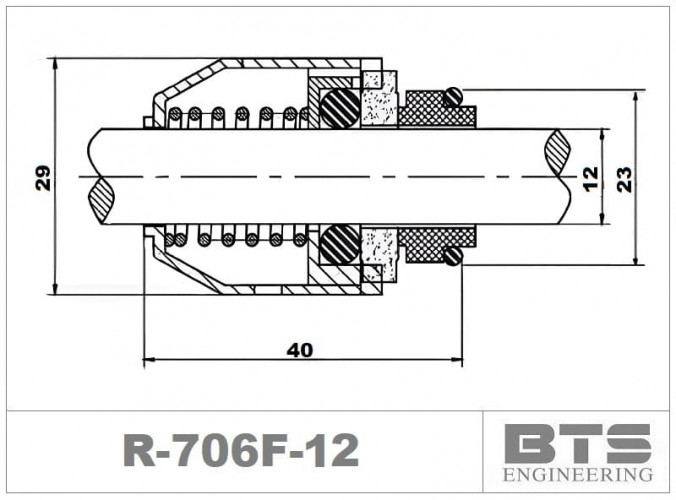

Characteristics
Producer:
BTS Engineering
Seal type:
R-706F
Outer diameter of the fixed ring, mm:
23
Stationary and rotating face:
TC/TC
Material of metal part:
AISI 304 stainless steel
Rubber type:
VITON
Shaft diameter:
12
See all
Categories
R-706F
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Italy: Out of stock
Code: 1053297
$118 netto
$124
- 5%
Saving $6
Amount:
Buy in 1 click
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Mechanical seal for Grundfos R-706F 12, TC/TC, VITON, 316 type Grundfos RUUE, Grundfos AUUE, Grundfos AUUV Mechanical seal for Grundfos R-706F 12, TC/TC, VITON, 316 type Grundfos RUUE, Grundfos AUUE, Grundfos AUUV
Pre-order only
$118
$124
-5%
Mechanical seal for Grundfos pump series CR, CRK, LM, LP, TP R-706F 16, TC/TC, VITON, 304 Mechanical seal for Grundfos pump series CR, CRK, LM, LP, TP R-706F 16, TC/TC, VITON, 304
Pre-order only
$152
$160
-5%
Mechanical seal for Grundfos pump R-706F 16, TC/TC, VITON, 316 Mechanical seal for Grundfos pump R-706F 16, TC/TC, VITON, 316
Pre-order only
$152
$160
-5%
Mechanical seal for Grundfos R-706F 16, TC/TC, VITON, 304 Mechanical seal for Grundfos R-706F 16, TC/TC, VITON, 304
In stock
$152
$159
-4%
Mechanical seal for Grundfos R-706F 16, TC/TC, VITON, 316 Mechanical seal for Grundfos R-706F 16, TC/TC, VITON, 316
In stock
$152
$159
-4%
Mechanical seal for Grundfos R-706F 22, TC/TC, VITON, 316 Mechanical seal for Grundfos R-706F 22, TC/TC, VITON, 316
In stock
$208
$219
-5%
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Producer
BTS Engineering
Seal type
R-706F
Outer diameter of the fixed ring, mm
23
Stationary and rotating face
TC/TC
Material of metal part
AISI 304 stainless steel
Rubber type
VITON
Shaft diameter
12
Application
Grundfos
Analogue for
Grundfos AUUE, Grundfos AUUV, Grundfos RUUE
Gross weight, kg
0.3
Length of transport packing, cm
5,5
Width of transport packing, cm
5,5
Height of transport packing, cm
5
Description Mechanical seal R-706F 12, TC/TC, VITON, 304 for Grundfos pump series CH, CR, CRN, CRT
Mechanical seal type R-706F (AUUE, RUUE- 22 mm) is designed for Grundfos pumps. R-706F-12mm: Grundfos article number 985167 / 405145 / 405009 / 96513598. R-706F-16mm: Grundfos article number 985204 / 339701 / 96521638. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
