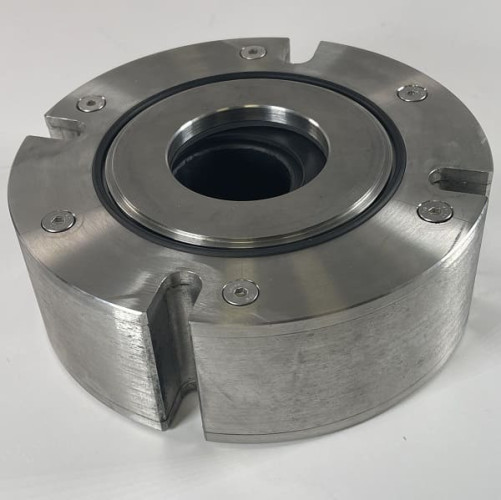

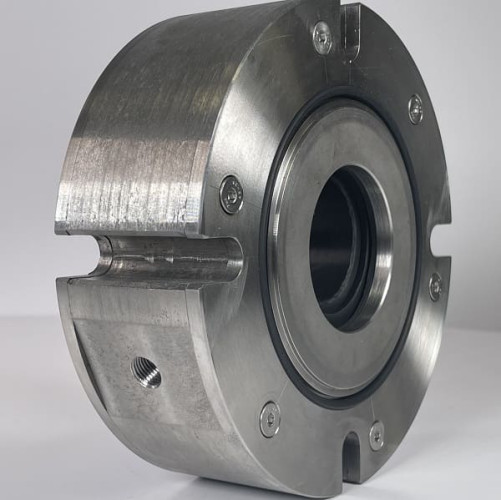

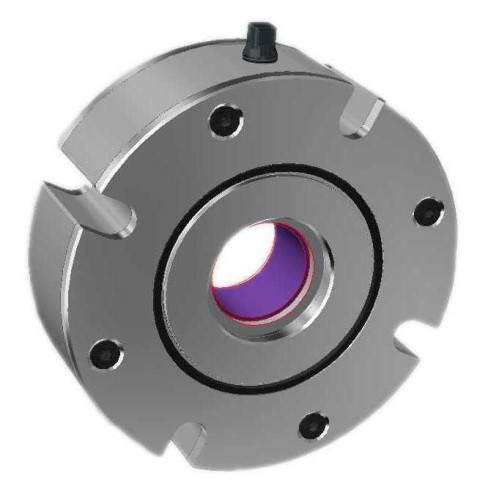

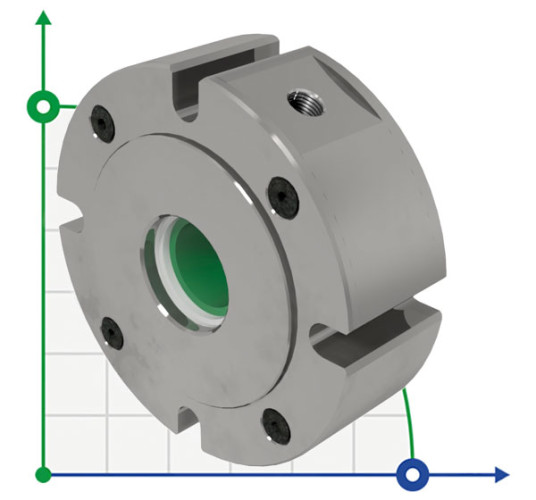

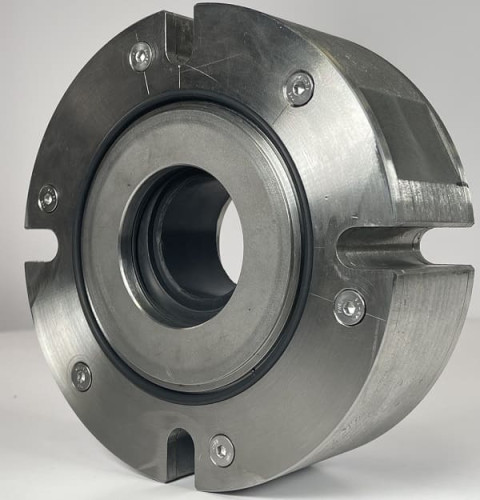

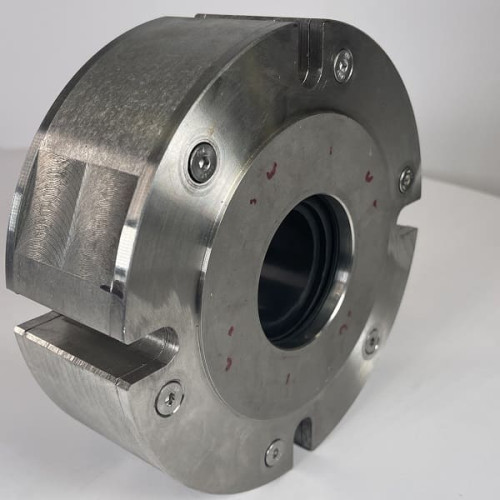

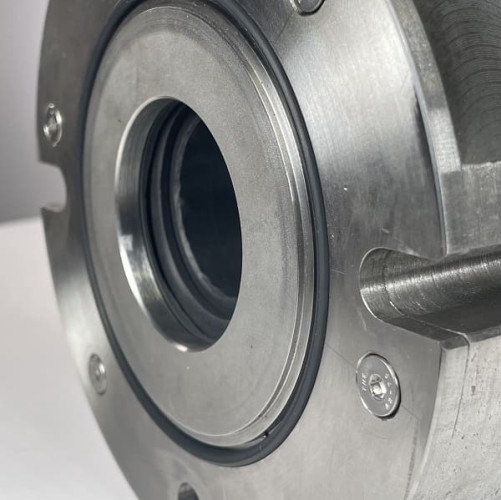

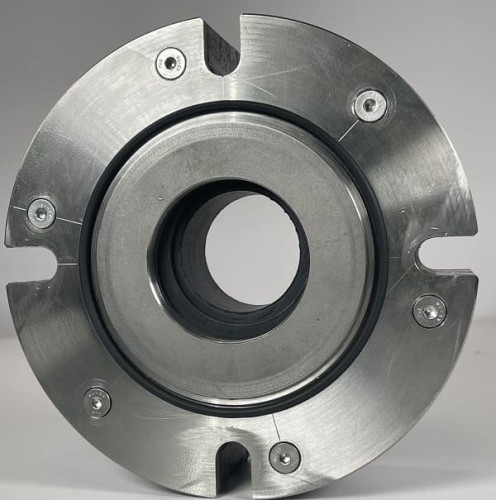

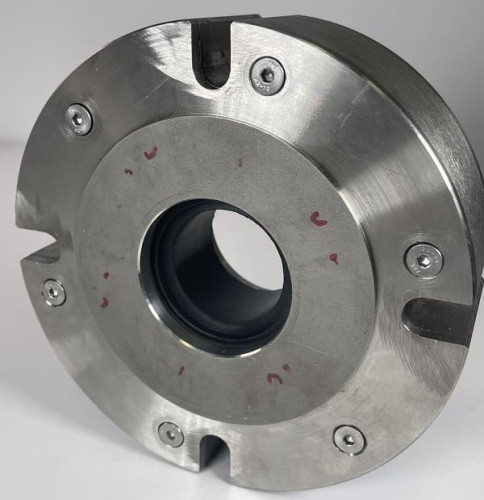

PALM 60-S-E agitator shaft seal

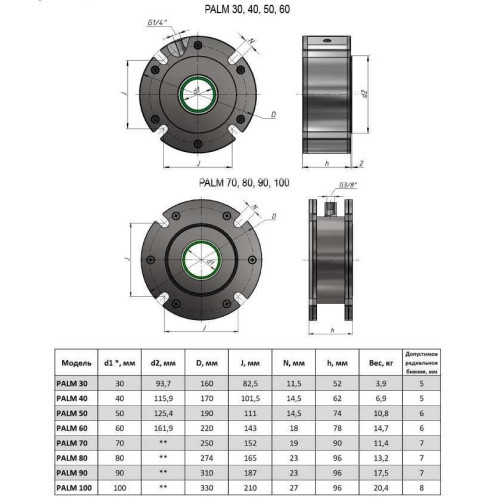

Price is on terms EXW, Ukraine. The advantage of this type of seal is easy to install and use, and versatility. PALM Mechanical Seals type used for liquid, gaseous and bulk products. Can be set to open Capacities, under pressure and under vacuum. For example - chemical reactors with stirrers, inclined, vertical and horizontal screw conveyors, ribbon blenders, mixers console and other industrial machinery and plants, where is the need to seal shafts and axles. The peculiarity of the seals is possible to work with a significant fluctuation of the radial shaft and its angular deviations. Specifications 1. Nominal shaft diameter - 60 mm * 2. Housing material - stainless steel AISI 304 3. Sealing plugs - EPDM 4. Material discs - PTFE 4 5. Temperature Range - -20 ... +120 C 6. Admission shaft misalignment - 6 mm 7. The maximum speed of the shaft - 130 r / min 8. Maximum pressure - 6 bar (if blowing compressed air) * In the range of 53 to 62 mm The advantage of this type of seal is easy to install and use, and versatility. PALM Mechanical Seals type used for liquid, gaseous and bulk products. Can be set to open Capacities, under pressure and under vacuum. For example - chemical reactors with stirrers, inclined, vertical and horizontal screw conveyors, ribbon blenders, mixers console and other industrial machinery and plants, where is the need to seal shafts and axles. The peculiarity of the seals is possible to work with a significant fluctuation of the radial shaft and its angular deviations.
