PALM 55-S-E agitator shaft seal

Brand:

BTS Engineering

0 Comment

Characteristics

Producer:

BTS Engineering

Housing material:

AISI 304 stainless steel

Pressure:

0,6 MPa

Operating temperature:

-20°C + 120°C

Seal type:

PALM

Diameter, mm:

Rubber type:

EPDM

See all

Categories

Seals for agitators, hoppers and conveyors withstand shaft runout

Favorite

Compare

Products from the same category

PALM 30-S-E agitator shaft seal

Pre-order only

$799.93

PALM 100-S-E agitator shaft seal

Pre-order only

$2,374.99

PALM 65-S-E agitator shaft seal

Pre-order only

$1,473.13

PALM 40-S-E agitator shaft seal

Pre-order only

$1,006.01

PALM 50-S-E agitator shaft seal

Pre-order only

$1,066.01

PALM 60-S-E agitator shaft seal

Pre-order only

$1,406.86

Features PALM 55-S-E agitator shaft seal

Producer	BTS Engineering
Housing material	AISI 304 stainless steel
Pressure	0,6 MPa
Operating temperature	-20°C + 120°C
Seal type	PALM

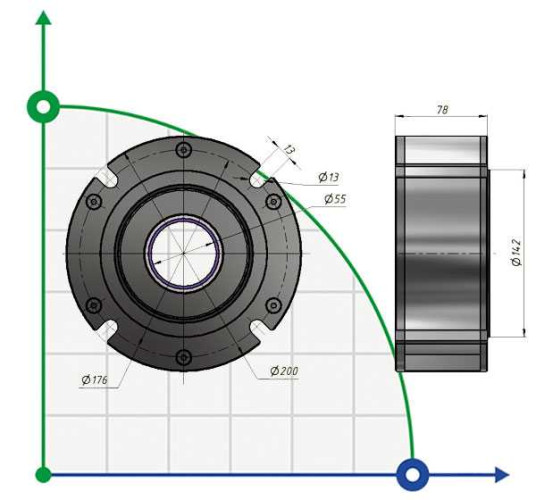

Diameter, mm	55
Rubber type	EPDM
Country of Origin	Ukraine
Application	mixer horizontal, chemical reactor, console mixer, ribbon blender, screw conveyor

Description PALM 55-S-E agitator shaft seal

Specifications 1. Body material - stainless steel AISI 304 2. Sealing sleeve - EPDM 3. Material discs - PTFE 4 (F4K20) 4. Temperature range - -10 ... +120 C 5. Admission shaft misalignment - 4 mm 6. Maximum speed shaft - 60 rev / min 7. Maximum pressure - 5 bar (if blowing compressed air)

Video PALM 55-S-E agitator shaft seal

PALM 55-S-E agitator shaft seal reviews
