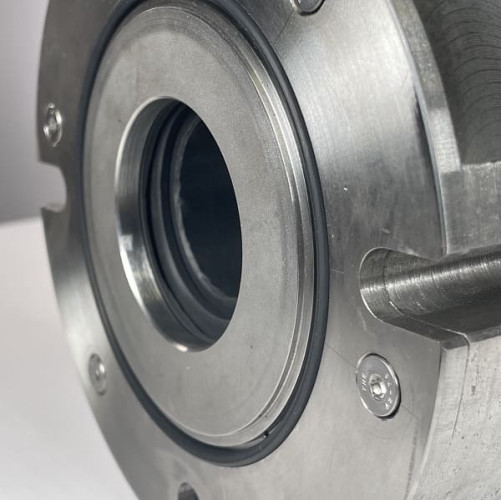

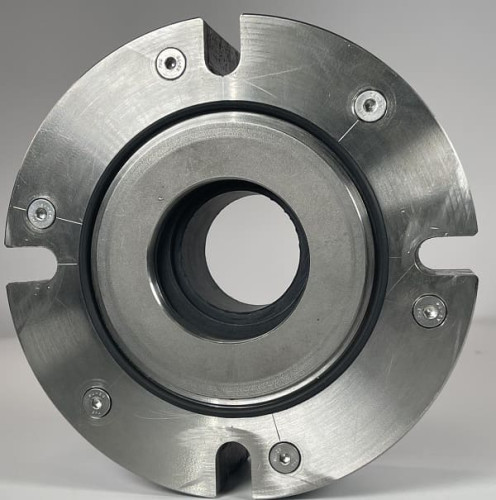

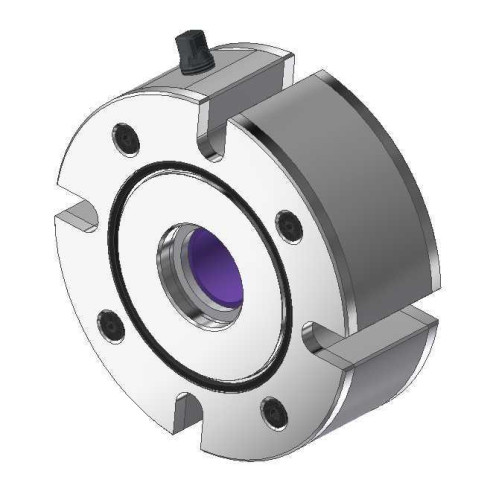

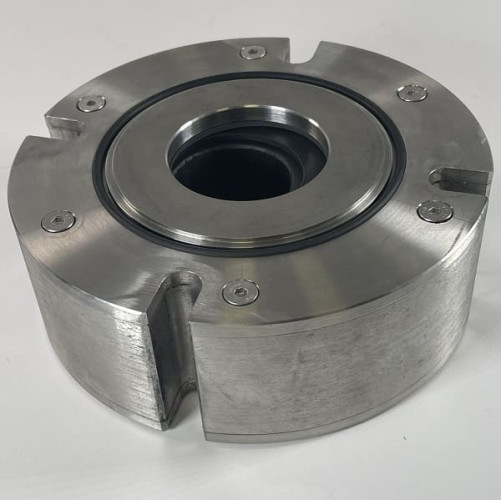

PALM 40-S-E agitator shaft seal
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Housing material:
AISI 304 stainless steel
Pressure:
0,6 MPa
Operating temperature:
-20°C + 120°C
Seal type:
PALM
Diameter, mm:
40
Rubber type:
EPDM
See all
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features PALM 40-S-E agitator shaft seal
Producer | BTS Engineering |
Housing material | AISI 304 stainless steel |
Pressure | 0,6 MPa |
Operating temperature | -20°C + 120°C |
Seal type | PALM |
Diameter, mm | 40 |
Rubber type | EPDM |
Country of Origin | Ukraine |
Application | screw conveyor, ribbon blender, console mixer, chemical reactor, mixer horizontal |
Description PALM 40-S-E agitator shaft seal
Price is on terms EXW, Ukraine.
The advantage of this type of seal is easy to install and use, and versatility. PALM Mechanical Seals type used for liquid, gaseous and bulk products. Can be set to open Capacities, under pressure and under vacuum. For example - chemical reactors with stirrers, inclined, vertical and horizontal screw conveyors, ribbon blenders, mixers console and other industrial machinery and plants, where is the need to seal shafts and axles.
The peculiarity of the seals is possible to work with a significant fluctuation of the radial shaft and its angular deviations.
Specifications

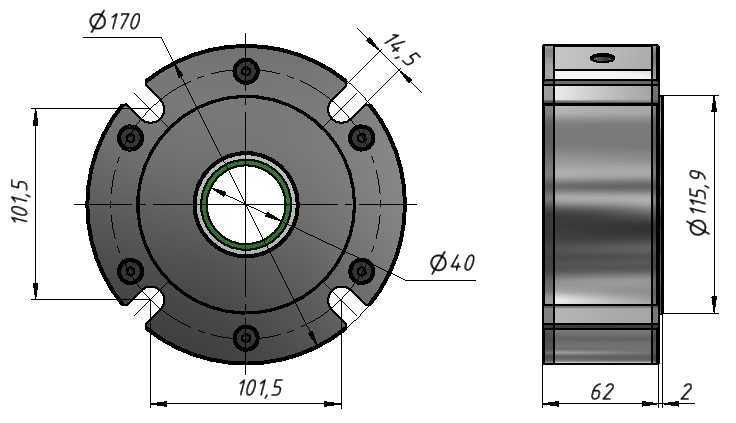

1. Nominal shaft diameter - 40 mm *
2. Housing material - stainless steel AISI 304
3. Sealing plugs - EPDM
4. Material discs - PTFE 4
5. Temperature Range - -20 ... +120 C
6. Admission shaft misalignment - 5 mm
7. The maximum speed of the shaft - 150 r / min
8. Maximum pressure - 6 bar (if blowing compressed air)
* In the range of 33 to 42 mm
