Drum pump BTS-SB-1100W+PPHT-HP-700mm (with constant speed)

Characteristics
Output pipe diameter:
25 mm
Producer:
BTS Engineering
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
1 100
Max. head, m:
30
Rate of turn, rpm:
10 000
Feed height, m:
30
See all
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1000014915
$816.54 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Also buy with this product
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Drum pump BTS-SB-1100W+PPHT-HP-700mm (with constant speed)
Output pipe diameter
25 mm
Producer
BTS Engineering
Power supply
1х220 V, 50 Hz
Power capacity, Wt
1 100
Max. head, m
30
Rate of turn, rpm
10 000
Feed height, m
30
Max.viscosity, cPs
800
Model
BTS НР
Pump capacity, cu.m/hour
6
Flow rate, l/min
100
Explosion protection
No
Max.temperature, C
80
Shaft material
Hastelloy
Length, mm
700
Material of flow channel
PP
Height, mm
700
Input pipe diameter
41 mm
Material
PP
Country of Origin
China
PumpType
drum
Drive Type
electric
Type of configuration
with engine
Availability of spare parts
yes
Warranty, months
12
Application
of hydrochloric acid, oil products, hardeners, molasses, pigments, food additives, food products, hydrofluoric acid, solvents, thickeners, fuel, acids, acetic acid, enzymes, chemistry, chemically active liquids, alkalis, oils, eurocube, barrels, CIP flushes, nitric acid, flavors
Analogue for
Fluimac, JESSBERGER, Lutz, DAYTON, Debem
Description Drum pump BTS-SB-1100W+PPHT-HP-700mm (with constant speed)

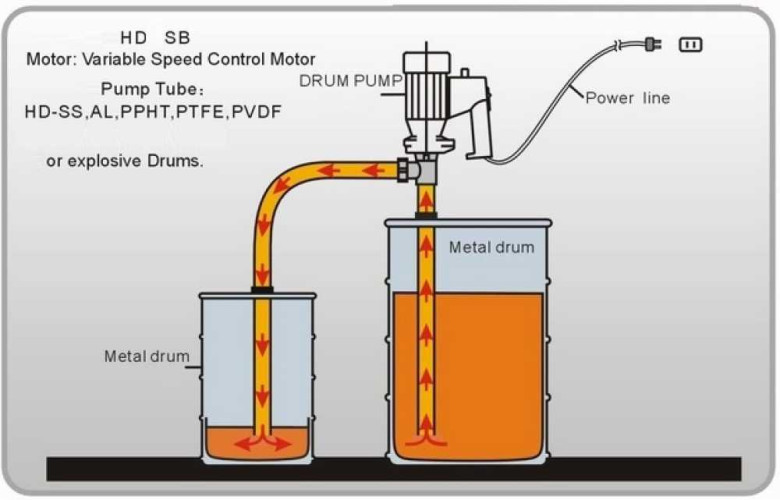

Drum pumps designated for transferring of various liquids from the cans, tanks and IBC containers. Drum pumps are made of different materials, e.g. stainless steel, Aluminum, PVC (poly vinyl chloride), Polypropylene and others. The delivery of acids, alkalis and reagents in drums and IBC (intermediate bulk containers) became the common practice. Specified tare oftentimes is for turn back and it means that the tare must be tipped out quickly and carefully and the returned to sender. As the containers with down discharge forbidden in many countries because of the liquid restriction danger, the only possibility of pumping the liquid became the using of housing on lid. The best equipment for this work is drum pumps. Drum pumps for chemically active liquids: sodium hydroxide, acetic acid, nitric acid, hydrofluoric acid and muriatic acid and others. Drum pumps transfer food supplements, feed products, molasses, deckers, atomizers, liquid products – concentrates and ingredients. In industry: pumping and loading of reagents and liquids from plastic tare, IBCs and drums. Drum pumps are widely used for transferring of petrochemicals, dissolvents, hardening agents and other components.
Documentation Drum pump BTS-SB-1100W+PPHT-HP-700mm (with constant speed)

Download instructions, catalog for Drum pump BTS-SB-1100W+PPHT-HP-700mm (with constant speed)
