Drum pump BTS-SB-1100W+PTFE-HP-1200mm (with constant speed)
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
25 mm
Producer:
BTS Engineering
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
1 100
Max. head, m:
30
Rate of turn, rpm:
10 000
Feed height, m:
30
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Drum pump BTS-SB-1100W+PTFE-HP-1200mm (with constant speed)
Output pipe diameter | 25 mm |
Producer | BTS Engineering |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 1 100 |
Max. head, m | 30 |
Rate of turn, rpm | 10 000 |
Feed height, m | 30 |
Max.viscosity, cPs | 800 |
Model | BTS НР |
Pump capacity, cu.m/hour | 6 |
Flow rate, l/min | 100 |
Explosion protection | No |
Max.temperature, C | 130 |
Shaft material | Hastelloy |
Length, mm | 1200 |
Material of flow channel | PTFE |
Height, mm | 1 200 |
Input pipe diameter | 50 mm |
Material | PTFE |
Country of Origin | China |
PumpType | drum |
Drive Type | electric |
Type of configuration | with engine |
Availability of spare parts | yes |
Warranty, months | 12 |
Application | of hydrochloric acid, oil products, hardeners, molasses, pigments, food additives, food products, hydrofluoric acid, solvents, thickeners, fuel, acids, acetic acid, enzymes, chemistry, chemically active liquids, alkalis, oils, eurocube, barrels, CIP flushes, nitric acid, flavors |
Analogue for | Fluimac, JESSBERGER, Lutz, DAYTON, Debem |
Description Drum pump BTS-SB-1100W+PTFE-HP-1200mm (with constant speed)

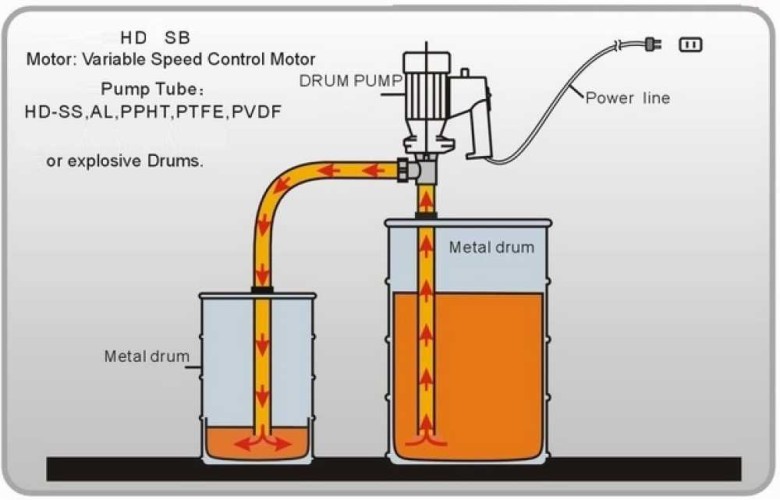

Drum pumps designated for transferring of various liquids from the cans, tanks and IBC containers. Drum pumps are made of different materials, e.g. stainless steel, Aluminum, PVC (poly vinyl chloride), Polypropylene and others.
The delivery of acids, alkalis and reagents in drums and IBC (intermediate bulk containers) became the common practice. Specified tare oftentimes is for turn back and it means that the tare must be tipped out quickly and carefully and the returned to sender. As the containers with down discharge forbidden in many countries because of the liquid restriction danger, the only possibility of pumping the liquid became the using of housing on lid. The best equipment for this work is drum pumps.
Drum pumps for chemically active liquids: sodium hydroxide, acetic acid, nitric acid, hydrofluoric acid and muriatic acid and others.
Drum pumps transfer food supplements, feed products, molasses, deckers, atomizers, liquid products – concentrates and ingredients. In industry: pumping and loading of reagents and liquids from plastic tare, IBCs and drums.
Drum pumps are widely used for transferring of petrochemicals, dissolvents, hardening agents and other components.
Documentation Drum pump BTS-SB-1100W+PTFE-HP-1200mm (with constant speed)
Download instructions, catalog for Drum pump BTS-SB-1100W+PTFE-HP-1200mm (with constant speed)
