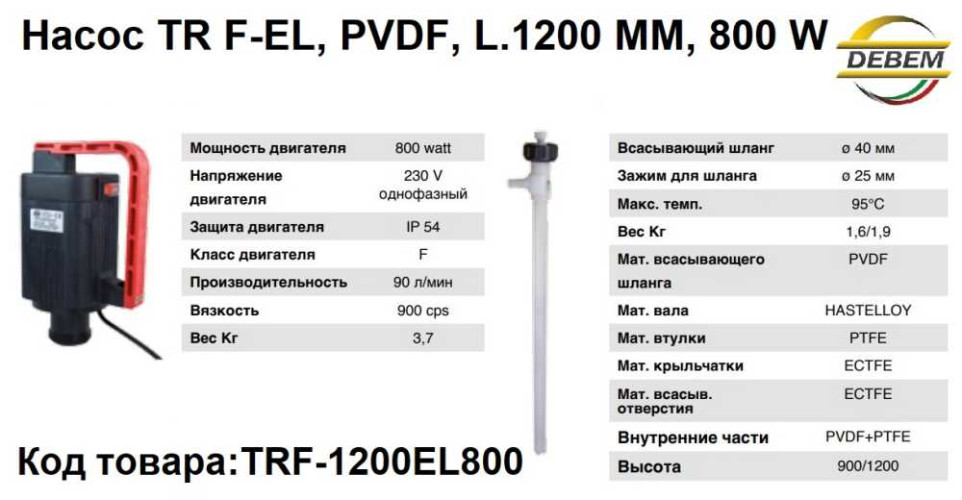

Pump TR F-EL, PVDF, L.1200 MM 800 W
Brand:
DEBEMCharacteristics
Output pipe diameter:
25 mm
Producer:
DEBEM
Impeller material:
ECTFE
Power supply:
1х220 V, 50 Hz
Rotor material:
HASTELLOY
Max. head, m:
15
Feed height, m:
15
See all
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Pump TR F-EL, PVDF, L.1200 MM 800 W
Output pipe diameter | 25 mm |
Producer | DEBEM |
Impeller material | ECTFE |
Power supply | 1х220 V, 50 Hz |
Rotor material | HASTELLOY |
Max. head, m | 15 |
Feed height, m | 15 |
Dimensions, mm | 1664*132*196 |
Max.viscosity, cPs | 900 |
Model | TR-EL |
Power capacity, kW | 0,8 |
Pump capacity, cu.m/hour | 5.4 |
Flow rate, l/min | 90 |
Explosion protection | No |
Seal | No |
Max.temperature, C | 95 |
Shaft material | Hastelloy |
Length, mm | 1200 |
Submersible part length, mm | 1 200 |
Material of flow channel | PVDF |
Input pipe diameter | 40 mm |
Material | PVDF |
Max.medium temperature, Celsius degree | 95 |
Serial number of the pump | TR |
Country of Origin | Italy |
Weight, kg | 5,6 |
Description Pump TR F-EL, PVDF, L.1200 MM 800 W
Barrel chemical pumps (pumps for drums) are used for pumping acids and alkalis, inert and corrosive liquids.
Barrel pumping TR Series pumps are designed and intended for pumping liquids with product viscosities of from 1 to 500 cps using a pneumatic motor (1 to 600 cps using electric motors), provided the chemical compatibility of the product with the structural components of the pump.
Working fluid temperature must leave from 3 ° C to max. 90 ° C, depending on the construction of the pump materials.
TR barrel pumps can operate with a maximum speed of 18000 rev / min using an electric motor, and 12,000 rev / min using a pneumatic motor (specially developed by company DEBEM).
- Variants: polypropylene (PP), PVDF (PVDF), N / v AISI 316;
- Interchangeability: electric or pneumatic motor;
