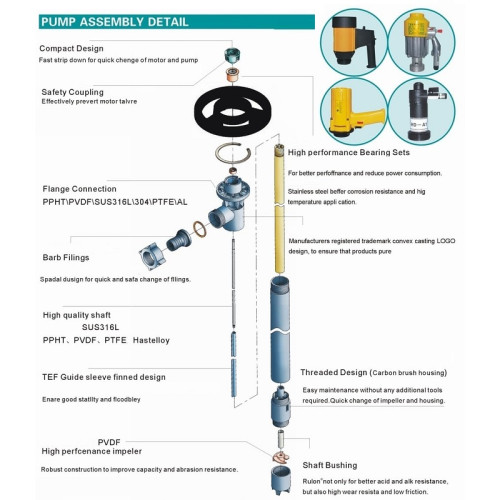

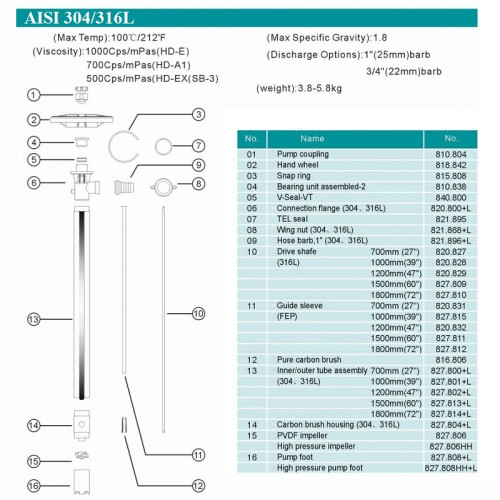

1000 mm, AISI 304, HP pump part (pipe) to the barrel pump

Characteristics
Output pipe diameter:
25
Producer:
BTS Engineering
Impeller material:
PVDF
Max.temperature, C:
100
Shaft material:
AISI 316L
Length, mm:
1 000
Height, mm:
1 000
See all
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1027385
$674.17 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Also buy with this product
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features 1000 mm, AISI 304, HP pump part (pipe) to the barrel pump
Output pipe diameter
25
Producer
BTS Engineering
Impeller material
PVDF
Max.temperature, C
100
Shaft material
AISI 316L
Length, mm
1 000
Height, mm
1 000
Diameter, mm
42
Material
AISI 304 stainless steel
Country of Origin
China
PumpType
drum
Type of configuration
without engine
Warranty, months
12
Analogue for
Debem, DAYTON, Lutz, JESSBERGER, Fluimac
Description 1000 mm, AISI 304, HP pump part (pipe) to the barrel pump
Application: acid pumps, barrel pump, pigment pump, alkali pump, Eurocube pump, Eurocube pump, eurocube chemistry pump, enzyme pump, oil pump, fuel pump, solvent pump. Barrel pumps are designed for pumping various types of liquids from cans, barrels and euro cubes. Barrel pumps are made of various materials, such as stainless steel, aluminum, PVC, polypropylene, etc. The supply of acids, alkalis and reagents in barrels and IBC containers has become a common practice. The specified container is most often reversible, which means that it needs to be emptied quickly and carefully and returned to the sender. Since containers with a drain located at the bottom began to be banned in many countries due to the risk of spillage, the only way to pump out the liquid was to use a hole in the lid. Barrel pumps have become the most suitable equipment for this work. Barrel pumps for chemically active liquids such as: sodium hydroxide, acetic acid, nitric acid, hydrofluoric acid, hydrochloric acid, nitric acid and others. Barrel pumps also pump food additives, food products, molasses, thickeners, flavorings, enzymes, liquid products -concentrates and ingredients. In industry: pumping and unloading of reagents and liquids from plastic containers, euro cubes and barrels. Barrel pumps also pump petroleum products, solvents, hardeners and other components. Barrel pumps of this series are not inferior in quality and technical characteristics to pumps of such manufacturers as Debem, Fluimac, JESSBERGER, Lutz and other brands.
Documentation 1000 mm, AISI 304, HP pump part (pipe) to the barrel pump

Download instructions, catalog for 1000 mm, AISI 304, HP pump part (pipe) to the barrel pump
