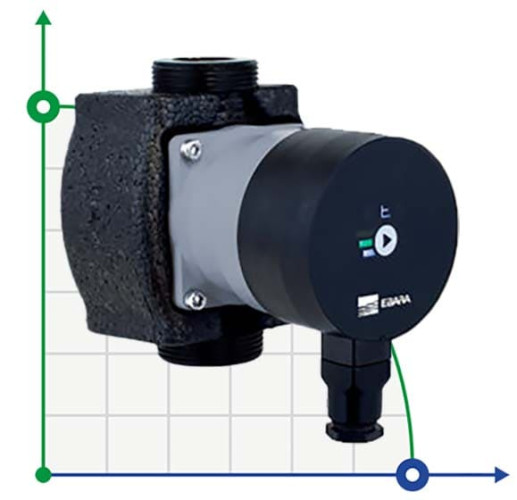

Ebara Ego 2 32/60-180, 220V electronically controlled circulation pump
Brand:
EbaraCharacteristics
Output pipe diameter:
G1 1/4
Producer:
Ebara
Housing material:
Сast iron
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
35
Max. head, m:
6.1
Feed height, m:
6.1
See all
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Ebara Ego 2 32/60-180, 220V electronically controlled circulation pump
Output pipe diameter | G1 1/4 |
Producer | Ebara |
Housing material | Сast iron |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 35 |
Max. head, m | 6.1 |
Feed height, m | 6.1 |
Power capacity, kW | 0,035 |
Protection | IP44 |
Explosion protection | No |
Max.flow rate, m3/h | 3 |
Max.temperature, C | 110 |
Shaft material | AISI 420 |
Installed length mm | 180 |
Frequency control | yes |
Input pipe diameter | G1 1/4 |
Material | cast iron |
Serial number of the pump | Ego |
Country of Origin | Italy |
PumpType | with wet rotor |
Drive Type | electric |
Installation Type | vertical |
Weight, kg | 1,93 |
Description Ebara Ego 2 32/60-180, 220V electronically controlled circulation pump
Ebara Ego circulation pump with wet rotor and threaded connection. Ebara Ego pumps differ from standard pumps in a single-speed transmission with the possibility of smooth adjustment, which can be adapted to the actual installation requirements. This feature allows you to achieve significant savings in terms of electricity consumption and guarantees a reduction in noise levels.
This feature allows you to achieve significant savings in terms of electricity consumption and guarantees a reduction in noise levels. Compared to its counterparts, this pump has a number of new design features: a new technology electric motor with the best efficiency in its class (less than 0.12), high efficiency and excellent reliability; a new front parameter monitoring display; a new electrical connector for easier connection.
The pumps are designed for single - and double-pipe heating systems, underfloor heating and mixing circuits in large systems. All Ebara Ego circulation pumps are able to automatically and independently adjust the pressure drop created, taking into account the needs of the heating system.
Application: heating systems, industrial circulation systems, cold water supply systems and air conditioning systems.
