Circulation pump UPS50-180 F 1x230-24

Circulation pump UPS50-180 F 1x230-24
Circulation pump UPS50-180 F 1x230-24
Circulation pump UPS50-180 F 1x230-24
Circulation pump UPS50-180 F 1x230-24
Circulation pump UPS50-180 F 1x230-24
Circulation pump UPS50-180 F 1x230-24
Circulation pump UPS50-180 F 1x230-24
Circulation pump UPS50-180 F 1x230-24
Circulation pump UPS50-180 F 1x230-24
Brand:
GRUNDFOS
0 Comment
Characteristics
Output pipe diameter:
DN 50
Producer:
GRUNDFOS
Impeller material:
AISI 304 stainless steel
Power supply:
1х220 V, 50 Hz
Max. head, m:
13
Feed height, m:
13
Power capacity, kW:
1
See all
Categories
Circulation pump
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 96402134
$1,748.65 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Circulation pump UPS 32-120 F 3x400-41 Circulation pump UPS 32-120 F 3x400-41
Pre-order only
$761.75
Stratos MAXO 50/0.5-16 PN6/10-R7 circulation pump WILO with electronic control Stratos MAXO 50/0.5-16 PN6/10-R7 circulation pump WILO with electronic control
Pre-order only
$3,439.04
Energy efficient pump for underfloor heating and heating HRS600EA-DN40, 220V with wet rotor Energy efficient pump for underfloor heating and heating HRS600EA-DN40, 220V with wet rotor
Pre-order only
$281.26
Electronically controlled circulation pump HRS600EA-DN50, 220V with wet rotor Electronically controlled circulation pump HRS600EA-DN50, 220V with wet rotor
Pre-order only
$281.26
Energy-saving heating circulation pump HRS600EA-DN65, 220V with wet rotor Energy-saving heating circulation pump HRS600EA-DN65, 220V with wet rotor
Pre-order only
$281.26
Circulation pump Grundfos UPS 50 -180 F 3x400 Circulation pump Grundfos UPS 50 -180 F 3x400
Pre-order only
$1,377
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$135.86
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,371.63
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$90.59
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$402.21
Control panel for pump, 4 kW Control panel for pump, 4 kW
$470.20
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$340.22
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$248.38
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$144.39
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$155.70
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$181.17
Control panel for pump, 3 kW Control panel for pump, 3 kW
$457.34
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$220.78
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$531.58
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$260.42
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$485.99
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$332.18
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$493.49
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$465.14
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,896.86
Control panel for pump, 11 kW Control panel for pump, 11 kW
$509.57
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$823.76
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$68.21
Control panel for pump, 15 kW Control panel for pump, 15 kW
$683.06
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$24.82
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$321.75
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Circulation pump UPS50-180 F 1x230-24
Output pipe diameter
DN 50
Producer
GRUNDFOS
Impeller material
AISI 304 stainless steel
Power supply
1х220 V, 50 Hz
Max. head, m
13
Feed height, m
13
Power capacity, kW
1
Pump capacity, cu.m/hour
30
Max.flow rate, m3/h
30
Pressure, bar
10
Installed length mm
280
Frequency control
no
Input pipe diameter
DN 50
Material
cast iron
Country of Origin
Denmark
PumpType
with wet rotor
Drive Type
electric
Installation Type
horizontal
Weight, kg
29,7
Description Circulation pump UPS50-180 F 1x230-24

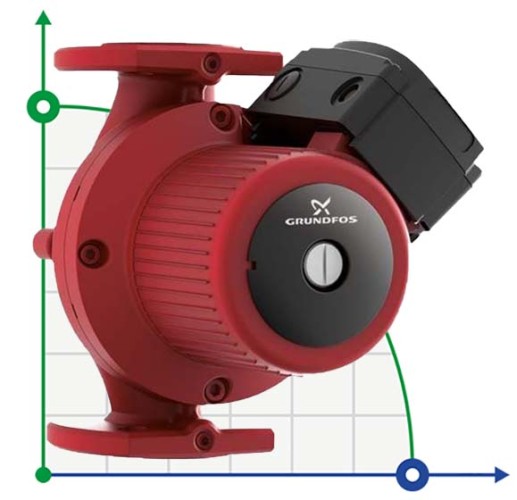

The Grundfos UPS 50-180 F circulation pump is a flanged pump for pumping liquids in heating, air conditioning and water supply systems. The pump can pump chemically non-aggressive liquids that have a low viscosity coefficient and no solid or fibrous particles. The pump is equipped with a motor with a "wet" rotor, i.e. in the process of pumping liquid along the circuit, the pump is lubricated by the same liquid, which eliminates the need for regular cleaning of the pump. It has three modes of shaft speed.
