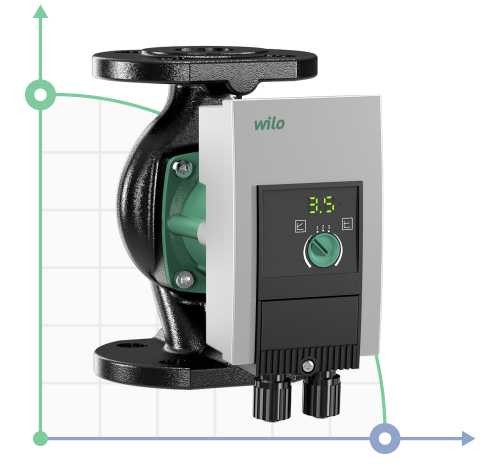

WILO Yonos MAXO 25/0,5-7 PN10 circulation pump with electric control
Brand:
Wilo0 Comment
Characteristics
Output pipe diameter:
G1
Producer:
Wilo
Power supply:
1х220 V, 50 Hz
Max. head, m:
7.4
Feed height, m:
7.4
Pump capacity, cu.m/hour:
8.2
Max.flow rate, m3/h:
8.2
See all
Categories
Favorite
Compare
Products from the same category
WILO STAR -RS30/6 circulation sealless pump. The model is out of production. Current model Wilo STRATOS
Pre-order only
$112.35
WILO STAR -RS30/7 circulation sealless pump. The model is out of production. Current model Wilo STRATOS
Pre-order only
$124.41
WILO STAR -RS30/8 circulation sealless pump. The model is out of production. Current model Wilo STRATOS
Pre-order only
$215.02
WILO STAR TOP-RL25/7.5 EM PN6/10 circulation sealless pump. The model is out of production
Pre-order only
$280.25
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features WILO Yonos MAXO 25/0,5-7 PN10 circulation pump with electric control
Output pipe diameter | G1 |
Producer | Wilo |
Power supply | 1х220 V, 50 Hz |
Max. head, m | 7.4 |
Feed height, m | 7.4 |
Pump capacity, cu.m/hour | 8.2 |
Max.flow rate, m3/h | 8.2 |
Nom.pressure, Mpa | 1 |
Max.temperature, C | 110 |
Installed length mm | 180 |
Frequency control | yes |
Material of flow channel | cast iron |
Input pipe diameter | G1 |
Serial number of the pump | Yonos MAXO |
Country of Origin | Germany |
PumpType | with wet rotor |
Drive Type | electric |
Type of configuration | with engine |
Description WILO Yonos MAXO 25/0,5-7 PN10 circulation pump with electric control
WILO Yonos MAXO wet rotor circulation pump, with threaded or flanged connection, electronically switched motor and automatic power matching. Application: heating systems, air conditioning systems, closed cooling circuits, industrial circulation systems.
Product features and benefits: LED display provides indication of setpoint values for the delivery head, speed stage or possible errors, convenient adjustment with three speed stages when replacing an uncontrolled standard pump, simplified electrical connection via Wilo-Connector system availability (reliability) due to generalized fault signaling , compact design and reliable easy operation
