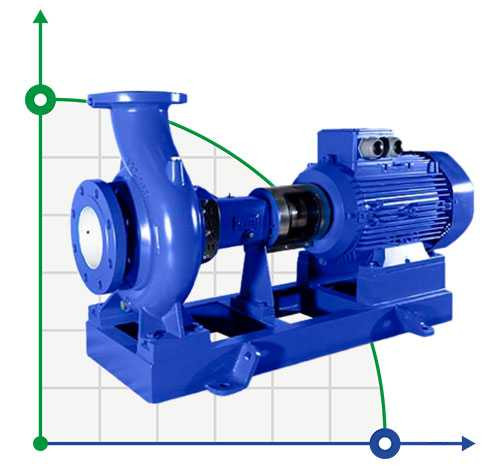

BTKF 100-315, 18,5 kW - Cantilever Single Stage Pump (1500)
Brand:
ERDUROCharacteristics
Output pipe diameter:
DN100
Producer:
ERDURO
Nom.head, m:
28
Power supply:
3х380 V, 50 Hz
Max. head, m:
33
Rate of turn, rpm:
1 500
Nom.flow rate, m3/h:
170
See all
Documentation
Favorite
Compare

Products from the same category
Also buy with this product




Features BTKF 100-315, 18,5 kW - Cantilever Single Stage Pump (1500)
Output pipe diameter | DN100 |
Producer | ERDURO |
Nom.head, m | 28 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 33 |
Rate of turn, rpm | 1 500 |
Nom.flow rate, m3/h | 170 |
Power capacity, kW | 18,5 |
Explosion protection | No |
Seal | Mechanical Seal |
Max.flow rate, m3/h | 220 |
Nom.pressure, Mpa | 1,6 |
Impeller diameter, mm | 305 |
Max.temperature, C | 120 |
Material of flow channel | cast iron |
Input pipe diameter | DN125 |
Country of Origin | Turkey |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Weight, kg | 170 |
Description BTKF 100-315, 18,5 kW - Cantilever Single Stage Pump (1500)
DESIGN FEATURES Bare Shaft Centrifugal Pumps. (DIN 24255)
- BTKF series pumps has designed for pumping non-abrasive and small particulars liquids.
- BTKF series pump has just one impeller, pump and motor is connecting by coupling. It gives yours avantages for easy disassembling.
- Pump Dimensions are according to EN 733 - DIN 24255 standard.
- Input and output flange dimensions are acceptable IEN 1092-2/PN 16.
- BTKF series is off the wheel and wheel balancing holes in the wings to minimize ta axial loads, dynamic loads are balanced within.
- Sealing is provided by gland packing. Sealing is provided by also mechanical seal as customer request.
- Easy dissasamble to pump and change impeller, bearings and seals.
- All impellers are statically and dynamically balanced according to ISO 1940 class 6.3.
- In addition to 29 models, 10 complementary models are designed in according to EN 733 standards. The main dimensions of complementary models may different from other manufacturers.
- Direction of rotation is clockwise viewed from the driver end.
- Optionally, pumps can be manufactured with shaft bushings and/or wear rings.
