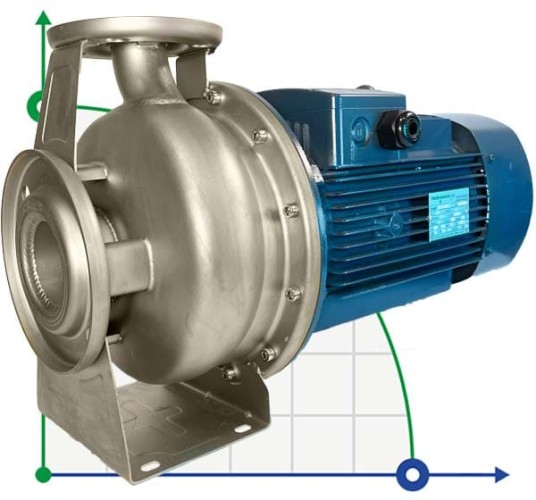

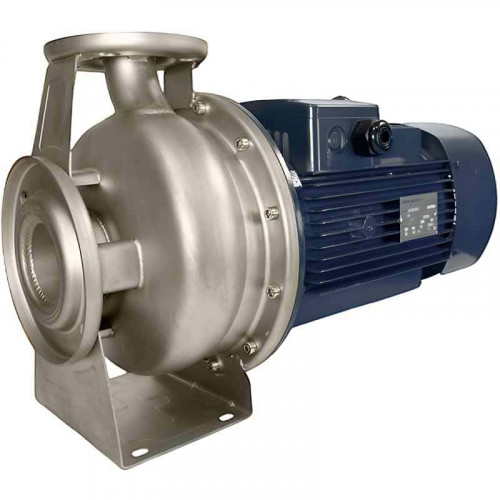

BZ 50-200/9,2 centrifugal monoblock pump (AISI)
BZ 50-200/9,2 centrifugal monoblock pump (AISI)
BZ 50-200/9,2 centrifugal monoblock pump (AISI)
BZ 50-200/9,2 centrifugal monoblock pump (AISI)
BZ 50-200/9,2 centrifugal monoblock pump (AISI)
BZ 50-200/9,2 centrifugal monoblock pump (AISI)
BZ 50-200/9,2 centrifugal monoblock pump (AISI)
BZ 50-200/9,2 centrifugal monoblock pump (AISI)
BZ 50-200/9,2 centrifugal monoblock pump (AISI)
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
50
Producer:
BTS Engineering
Housing material:
AISI 304 stainless steel
Impeller material:
AISI 304 stainless steel
Nom.head, m:
47.5
Power supply:
3х380 V, 50 Hz
Feed height, m:
47.5
See all
Documentation
Favorite
Compare
Products from the same category
BZ 50-125/4 centrifugal monoblock pump (AISI)
In stock
$1,086.57
BZ 50-160/5,5 centrifugal monoblock pump (AISI)
In stock
$1,217.66
BZ 50-160/7,5 centrifugal monoblock pump (AISI)
In stock
$1,337.46
BZ 50-200/11 centrifugal monoblock pump (AISI)
In stock
$1,837.61
BZ 50-200/15 centrifugal monoblock pump (AISI)
In stock
$2,301.02
BZ 65-125/4 centrifugal monoblock pump (AISI)
Pre-order only
$1,097.80
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures BZ 50-200/9,2 centrifugal monoblock pump (AISI)
Output pipe diameter | 50 |
Producer | BTS Engineering |
Housing material | AISI 304 stainless steel |
Impeller material | AISI 304 stainless steel |
Nom.head, m | 47.5 |
Power supply | 3х380 V, 50 Hz |
Feed height, m | 47.5 |
Nom.flow rate, m3/h | 42 |
Power capacity, kW | 9,2 |
Protection | IP55 |
Pump capacity, cu.m/hour | 42 |
Explosion protection | No |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Input pipe diameter | 65 |
Material | AISI 304 stainless steel |
Serial number of the pump | BZ |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Warranty, months | 12 |
Application | salt, pressure increase, caustic, must, cheese curds, liquid fertilizer, CAS, juices, ammonia mixture, mash, mud solution, mash, urea, water, milk, guilt, CIP flushes, food products, recycling water supply, ice water, cooling towers, glaze, drying, heating, drying chamber |
Weight, kg | 61,7 |
Length of transport packing, cm | 61 |
Width of transport packing, cm | 45 |
Height of transport packing, cm | 32 |
Height of transport volume, cbm | 0,088 |
Description BZ 50-200/9,2 centrifugal monoblock pump (AISI)
Stainless steel standard pump BZ
Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation,
industrial applications, water circulation in climatisation sets, agricultural applications.
Suitable for use with clean, aggressive liquids that are chemically
compatible with the materials from which the pump is made.
The pumps must be installed in enclosed places, or at least protected against inclement weather.

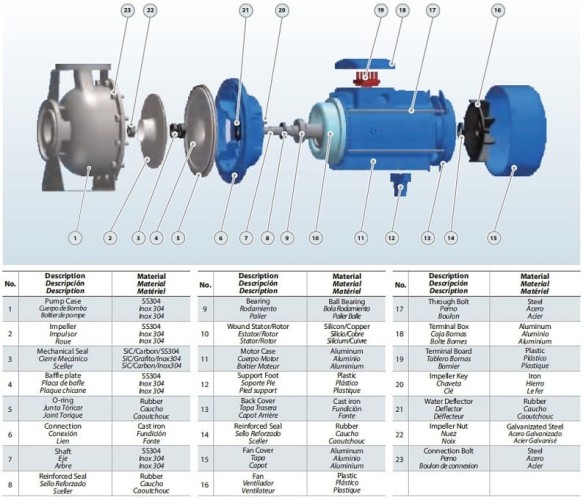

TECHNICAL DESCRIPTION
- New stainless steel standard pump
- Original design by PURITY
- Both square motor & round motor available
- YE3 high efficient motor, with protection IP55 class F
- Pump case in stainless steel AISI 304
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Quality NSK bearing, wear resistance mechanical seal
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
Documentation BZ 50-200/9,2 centrifugal monoblock pump (AISI)
Download instructions, catalog for BZ 50-200/9,2 centrifugal monoblock pump (AISI)
