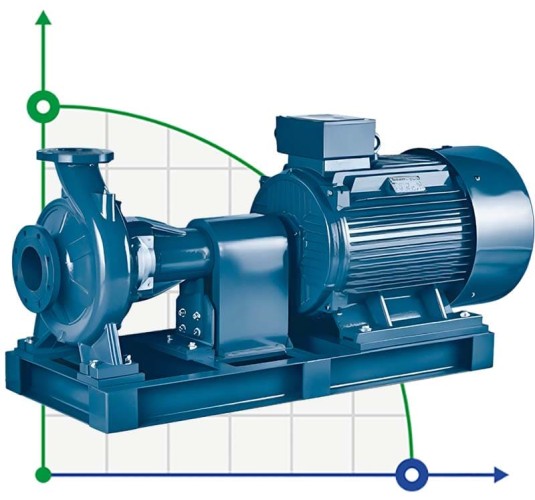

Pump for increasing pressure BSM 150-315/1850 (500/82.8), 185kW, 2900
Pump for increasing pressure BSM 150-315/1850 (500/82.8), 185kW, 2900
Pump for increasing pressure BSM 150-315/1850 (500/82.8), 185kW, 2900
Pump for increasing pressure BSM 150-315/1850 (500/82.8), 185kW, 2900
Pump for increasing pressure BSM 150-315/1850 (500/82.8), 185kW, 2900
Pump for increasing pressure BSM 150-315/1850 (500/82.8), 185kW, 2900
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
DN150
Producer:
BTS Engineering
Impeller material:
cast iron
Nom.head, m:
82.8
Power supply:
3х380 V, 50 Hz
Max. head, m:
92
Rate of turn, rpm:
2 900
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Console pump for circulation BSM 150-250/1320 (660/62), 132kW, 2900
Pre-order only
$16,021.43
Air conditioning pump BSM 150-250/1600 (660/75), 160kW, 2900
Pre-order only
$16,881.02
Console pump BSM 150-250/2000 (660/85), 200kW, 2900
Pre-order only
$17,649.88
Console pump for circulation BSM 150-315/2500 (660/92), 250kW, 2900
Pre-order only
$27,211.17
Console pump for water supply BSM 150-315/2800 (660/105), 280kW, 2900
Pre-order only
$28,386.76
Pump for increasing pressure BSM 150-315/3150 (660/118), 315kW, 2900
Pre-order only
$31,058.50
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Pump for increasing pressure BSM 150-315/1850 (500/82.8), 185kW, 2900
Output pipe diameter | DN150 |
Producer | BTS Engineering |
Impeller material | cast iron |
Nom.head, m | 82.8 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 92 |
Rate of turn, rpm | 2 900 |
Feed height, m | 92 |
Nom.flow rate, m3/h | 500 |
Power capacity, kW | 185 |
Protection | IP55 |
Pump capacity, cu.m/hour | 800 |
Explosion protection | No |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Max.flow rate, m3/h | 800 |
Nom.pressure, Mpa | 2 |
Impeller diameter, mm | 287 |
Max.temperature, C | 120 |
Input pipe diameter | DN200 |
Material | cast iron |
Serial number of the pump | BSM |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Warranty, months | 12 |
Application | cooling towers, pressure increase, water, recycling water supply, drying chamber, heating, circulation, drying, glaze, ice water |
Description Pump for increasing pressure BSM 150-315/1850 (500/82.8), 185kW, 2900
The console pump of the BSM series is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump body.
Documentation Pump for increasing pressure BSM 150-315/1850 (500/82.8), 185kW, 2900
Download instructions, catalog for Pump for increasing pressure BSM 150-315/1850 (500/82.8), 185kW, 2900
