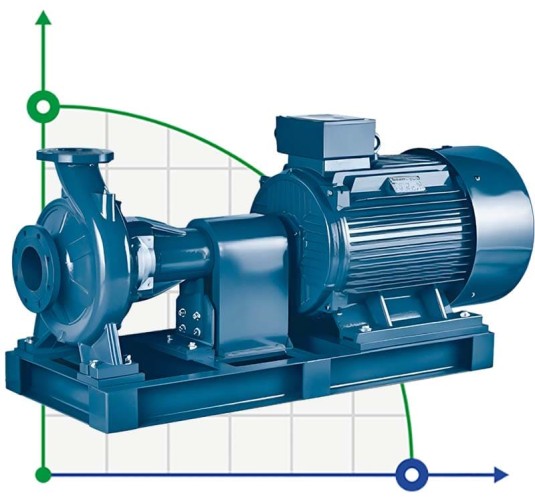

Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450

Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Brand:
BTS Engineering
0 Comment
Characteristics
Output pipe diameter:
DN65
Producer:
BTS Engineering
Impeller material:
cast iron
Nom.head, m:
9
Power supply:
3х380 V, 50 Hz
Max. head, m:
10.3
Rate of turn, rpm:
1 450
See all
Documentation
Categories
Console pumps
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1045326
$1,229.96 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Pump for increasing pressure BSM 150-315/3150 (660/118), 315kW, 2900 Pump for increasing pressure BSM 150-315/3150 (660/118), 315kW, 2900
Pre-order only
$28,234.99
Pump for water supply BSM4 65-160/11 (45/6.3), 1.1kW, 1450 Pump for water supply BSM4 65-160/11 (45/6.3), 1.1kW, 1450
Pre-order only
$1,045.99
Console pump for water supply BSM4 65-160/15 (45/7.4), 1.5kW, 1450 Console pump for water supply BSM4 65-160/15 (45/7.4), 1.5kW, 1450
Pre-order only
$1,084.29
Cantilever irrigation pump BSM4 65-200/15 (45/8.2), 1.5kW, 1450 Cantilever irrigation pump BSM4 65-200/15 (45/8.2), 1.5kW, 1450
Pre-order only
$1,134.90
Console pump for irrigation BSM4 65-200/22 (45/11), 2.2kW, 1450 Console pump for irrigation BSM4 65-200/22 (45/11), 2.2kW, 1450
Pre-order only
$1,243.32
Cantilever pump for circulation BSM4 65-200/30 (45/13.1), 3kW, 1450 Cantilever pump for circulation BSM4 65-200/30 (45/13.1), 3kW, 1450
Pre-order only
$1,391.87
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$123.52
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,156.03
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$82.35
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$365.65
Control panel for pump, 4 kW Control panel for pump, 4 kW
$427.46
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$309.30
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$225.79
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$131.26
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$141.53
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$164.70
Control panel for pump, 3 kW Control panel for pump, 3 kW
$415.77
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$200.71
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$483.25
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$236.74
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$441.80
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$301.99
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$448.62
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$422.86
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,724.41
Control panel for pump, 11 kW Control panel for pump, 11 kW
$463.25
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$748.87
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$62.01
Control panel for pump, 15 kW Control panel for pump, 15 kW
$620.95
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$22.57
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$292.50
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
Output pipe diameter
DN65
Producer
BTS Engineering
Impeller material
cast iron
Nom.head, m
9
Power supply
3х380 V, 50 Hz
Max. head, m
10.3
Rate of turn, rpm
1 450
Feed height, m
10.3
Nom.flow rate, m3/h
45
Power capacity, kW
2,2
Protection
IP55
Pump capacity, cu.m/hour
84
Explosion protection
No
Seal
Mechanical Seal, Carbon-SiC-NBR
Max.flow rate, m3/h
84
Nom.pressure, Mpa
1,6
Impeller diameter, mm
183
Max.temperature, C
120
Input pipe diameter
DN80
Material
cast iron
Serial number of the pump
BSM4
Country of Origin
China
PumpType
console
Drive Type
electric
Installation Type
horizontal
Type of configuration
with engine
Warranty, months
12
Application
cooling towers, pressure increase, water, recycling water supply, drying chamber, heating, circulation, drying, glaze, ice water
Description Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
The console pump of the BSM4 series is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
Documentation Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450

Download instructions, catalog for Console pump for circulation BSM4 65-160/22 (45/9), 2.2kW, 1450
