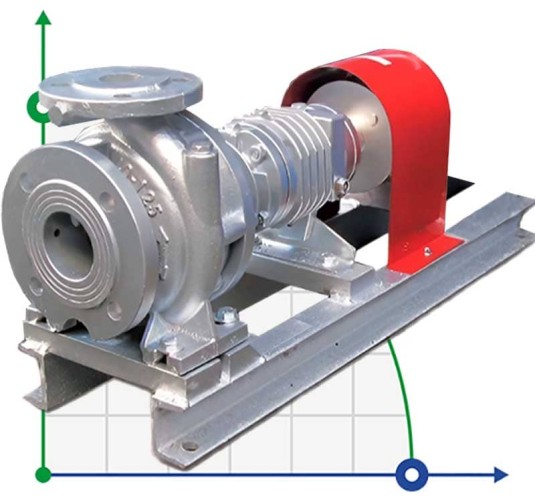

Hot oil pump EMSE EKY 125-200, 75 kW, 2900 with frame coupling, without motor
Hot oil pump EMSE EKY 125-200, 75 kW, 2900 with frame coupling, without motor
Hot oil pump EMSE EKY 125-200, 75 kW, 2900 with frame coupling, without motor
Hot oil pump EMSE EKY 125-200, 75 kW, 2900 with frame coupling, without motor
Hot oil pump EMSE EKY 125-200, 75 kW, 2900 with frame coupling, without motor
Brand:
EMSECharacteristics
Output pipe diameter:
DN125
Producer:
EMSE
Max. head, m:
64.7
Rate of turn, rpm:
2 900
Power capacity, kW:
75
Impeller diameter, mm:
220
Explosion protection:
No
See all
Documentation
Favorite
Compare
Products from the same category
Circulation pump BS 32-160/15 (15/18.5), 1.5kW, 2900 without motor
Pre-order only
$390.37
Circulation pump BS 40-160/40 (27/33), 4kW, 2900 without motor
Pre-order only
$440.59
Circulation console pump BS4 80-250/75 (72/21.3), 7.5kW, 1450 without motor
Pre-order only
$885.14
Thermal oil boiler pump EMSE EKY 100-250, 110 kW, 2900 with a coupling on the frame, without a motor
Pre-order only
$5,559.50
Hot oil pump EMSE EKY 125-200, 45 kW, 2900 with coupling on frame, without motor
Pre-order only
$5,869.11
Centrifugal oil pump up to 350C EMSE EKY 125-200, 55 kW, 2900 with frame coupling, without motor
Pre-order only
$5,869.11
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Hot oil pump EMSE EKY 125-200, 75 kW, 2900 with frame coupling, without motor
Output pipe diameter | DN125 |
Producer | EMSE |
Max. head, m | 64.7 |
Rate of turn, rpm | 2 900 |
Power capacity, kW | 75 |
Impeller diameter, mm | 220 |
Explosion protection | No |
Max.flow rate, m3/h | 500 |
Max.temperature, C | 320 |
Input pipe diameter | DN150 |
Material | cast iron |
Serial number of the pump | EKY |
Country of Origin | Turkey |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Application | thermal oils, superheated water |
Analogue for | KSB, ERDURO BTKF-K, FLOWSERVE, Pompetravaini TCD, ALLWEILER, SIHI, WILO |
Weight, kg | 89 |
Description Hot oil pump EMSE EKY 125-200, 75 kW, 2900 with frame coupling, without motor
EMSE pumps of the EKY series are heat exchange pumps, which are often used in the processes of pumping high temperature liquids, hot oil 320°C, hot water, for heating bitumen, for woodworking plants. This is a centrifugal pump with one impeller, a casing with fins for cooling, and an electric motor connected to the casing by an elastic coupling. This offers advantages during dismantling. The pump is fitted with a mechanical seal made of materials resistant to high temperatures. The bearing system is designed to withstand the pumping of hot liquids. The parts are made of ductile iron and the bearings are made of steel as standard. The pump can be easily disassembled if the impeller, bearings or seals need to be replaced.
Documentation Hot oil pump EMSE EKY 125-200, 75 kW, 2900 with frame coupling, without motor
Download instructions, catalog for Hot oil pump EMSE EKY 125-200, 75 kW, 2900 with frame coupling, without motor
