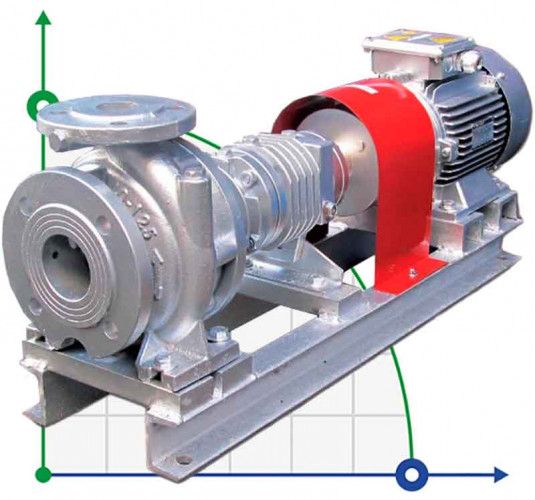

Hot oil pump EMSE EKY 32-200, 7.5 kW, 380V, 2900 with motor, frame mounted coupling
Hot oil pump EMSE EKY 32-200, 7.5 kW, 380V, 2900 with motor, frame mounted coupling
Hot oil pump EMSE EKY 32-200, 7.5 kW, 380V, 2900 with motor, frame mounted coupling
Hot oil pump EMSE EKY 32-200, 7.5 kW, 380V, 2900 with motor, frame mounted coupling
Hot oil pump EMSE EKY 32-200, 7.5 kW, 380V, 2900 with motor, frame mounted coupling
Brand:
EMSECharacteristics
Output pipe diameter:
DN32
Producer:
EMSE
Housing material:
чавун GGG40
Impeller material:
чавун GGG 40
Nom.head, m:
45
Power supply:
3х380 V, 50 Hz
Max. head, m:
54.7
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Stainless steel pump NX65/1250 (160), 9.3 kW, 132 m3/h, 36.5 m, 380V/T, AISI 304 (EBARA 3M 65-160/9.2)
Pre-order only
$2,589.08
Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)
Pre-order only
$4,445.99
Stainless steel cooling tower pump NX65/3000 (200), 22 kW, 138 m3/h, 60.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/22)
Pre-order only
$4,767.97
Self-priming cantilever pump BZWB 65-30-18/2, 4kW, 2900, Ex, imp: AISI 304
Pre-order only
$1,743.03
Self-priming diesel fuel pump BZWB 65-30-18/4, 4kW, 1450, Ex, imp: AISI 304
Pre-order only
$2,324.27
Self-priming diesel fuel pump BZWB 65-25-30/2, 5.5 kW, 2900, Ex, imp: AISI 304
Pre-order only
$2,187.83
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Hot oil pump EMSE EKY 32-200, 7.5 kW, 380V, 2900 with motor, frame mounted coupling
Output pipe diameter | DN32 |
Producer | EMSE |
Housing material | чавун GGG40 |
Impeller material | чавун GGG 40 |
Nom.head, m | 45 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 54.7 |
Rate of turn, rpm | 2 900 |
Feed height, m | 54.7 |
Nom.flow rate, m3/h | 30 |
Power capacity, kW | 7,5 |
Pump capacity, cu.m/hour | 35 |
Explosion protection | No |
Seal | Mechanical Seal |
Max.flow rate, m3/h | 35 |
Impeller diameter, mm | 200 |
Max.temperature, C | 320 |
Shaft material | AISI 420 |
Input pipe diameter | DN50 |
Material | cast iron |
Serial number of the pump | EKY |
Country of Origin | Turkey |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Warranty, months | 12 |
Application | thermal oils, superheated water |
Analogue for | ERDURO BTKF-K, FLOWSERVE, Pompetravaini TCD, ALLWEILER, SIHI, KSB, WILO |
Description Hot oil pump EMSE EKY 32-200, 7.5 kW, 380V, 2900 with motor, frame mounted coupling
EMSE pumps of the EKY series are heat exchange pumps, which are often used in the processes of pumping high temperature liquids, hot oil 320°C, hot water, for heating bitumen, for woodworking plants. This is a centrifugal pump with one impeller, a casing with fins for cooling, and an electric motor connected to the casing by an elastic coupling. This offers advantages during dismantling. The pump is fitted with a mechanical seal made of materials resistant to high temperatures. The bearing system is designed to withstand the pumping of hot liquids. The parts are made of ductile iron and the bearings are made of steel as standard. The pump can be easily disassembled if the impeller, bearings or seals need to be replaced.
Documentation Hot oil pump EMSE EKY 32-200, 7.5 kW, 380V, 2900 with motor, frame mounted coupling
Download instructions, catalog for Hot oil pump EMSE EKY 32-200, 7.5 kW, 380V, 2900 with motor, frame mounted coupling
