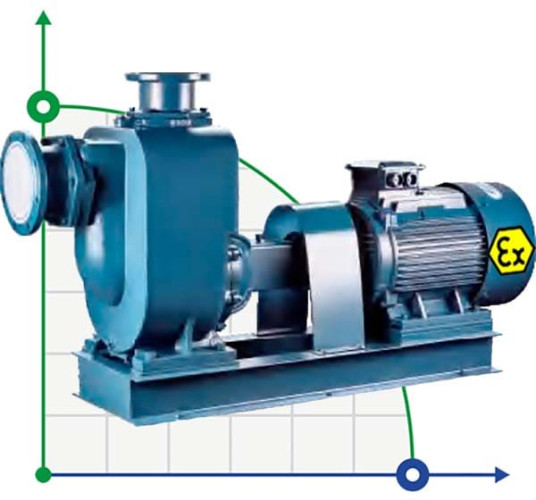

Self-priming cantilever pump BZWB 80-50-15/2, 5,5 kW, 2900, Ex, imp: AISI 304

Characteristics
Output pipe diameter:
80
Producer:
BTS Engineering
Impeller material:
AISI 304 stainless steel
Nom.head, m:
15
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
2 900
Feed height, m:
15
See all
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1038414
$1,949.86 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Also buy with this product
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Self-priming cantilever pump BZWB 80-50-15/2, 5,5 kW, 2900, Ex, imp: AISI 304
Output pipe diameter
80
Producer
BTS Engineering
Impeller material
AISI 304 stainless steel
Nom.head, m
15
Power supply
3х380 V, 50 Hz
Rate of turn, rpm
2 900
Feed height, m
15
Dimensions, mm
590х335х590
Nom.flow rate, m3/h
50
Power capacity, kW
5,5
Protection
IP55
Pump capacity, cu.m/hour
50
Explosion protection
Yes
Seal
Mechanical Seal, Carbon-SiC-NBR
Max.temperature, C
80
Input pipe diameter
80
Material
cast iron
Serial number of the pump
BZWB
Country of Origin
China
PumpType
console
Drive Type
electric
Installation Type
horizontal
Type of configuration
with engine
Warranty, months
12
Application
diesel fuel, gasoline pumping, diesel fuel pumping, oil products
Description Self-priming cantilever pump BZWB 80-50-15/2, 5,5 kW, 2900, Ex, imp: AISI 304
Self-priming explosion-proof pump BZWB. Impeller with two blades, closed type, with wide channels for clean and dirty liquids with the presence of impurities. The pump part is connected to the motor through a coupling, which guarantees rapid restoration of the pump's operability in case of electric emergencies. AISI304 stainless steel pump part versions, available for all models. High electrical and hydraulic efficiency. High self - priming rate without the use of a check valve (4.5-6.0 m of water).St). The possibility of self-sealing is realized due to the presence of a pre-fill chamber in the pump housing. The pumps of this model are suitable for chemical, petroleum, pharmaceutical, mining, paper, fiber, cellulose, textile, food, power plants and urban sewage structures, sewage systems of public facilities, and other industries. These pumps are particularly effective for pumping gasoline and diesel fuel, bioethanol. High productivity guarantees fast and reliable loading / unloading of railway and automobile tanks, stationary storage facilities, and tank farms.
Documentation Self-priming cantilever pump BZWB 80-50-15/2, 5,5 kW, 2900, Ex, imp: AISI 304

Download instructions, catalog for Self-priming cantilever pump BZWB 80-50-15/2, 5,5 kW, 2900, Ex, imp: AISI 304
