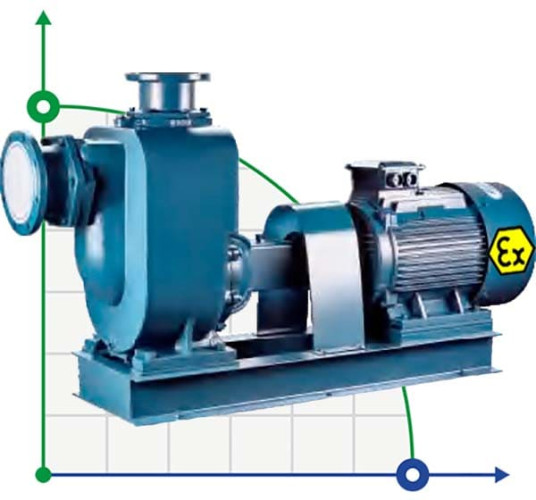

Self-priming cantilever pump BZWB 80-65-25/2, 7.5 kW, 2900, Ex, imp: AISI 304
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
80
Producer:
BTS Engineering
Impeller material:
AISI 304 stainless steel
Nom.head, m:
25
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
2 900
Feed height, m:
25
See all
Documentation
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Self-priming cantilever pump BZWB 80-65-25/2, 7.5 kW, 2900, Ex, imp: AISI 304
Output pipe diameter | 80 |
Producer | BTS Engineering |
Impeller material | AISI 304 stainless steel |
Nom.head, m | 25 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 2 900 |
Feed height, m | 25 |
Dimensions, mm | 590х335х590 |
Nom.flow rate, m3/h | 65 |
Power capacity, kW | 7,5 |
Protection | IP55 |
Pump capacity, cu.m/hour | 65 |
Explosion protection | Yes |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Max.temperature, C | 80 |
Input pipe diameter | 80 |
Material | cast iron |
Serial number of the pump | BZWB |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Warranty, months | 12 |
Application | diesel fuel, gasoline pumping, diesel fuel pumping, oil products |
Description Self-priming cantilever pump BZWB 80-65-25/2, 7.5 kW, 2900, Ex, imp: AISI 304
Self-priming explosion-proof pump BZWB. Impeller with two blades, closed type, with wide channels for clean and dirty liquids with the presence of impurities. The pump part is connected to the motor through a coupling, which guarantees rapid restoration of the pump's operability in case of electric emergencies. AISI304 stainless steel pump part versions, available for all models. High electrical and hydraulic efficiency. High self - priming rate without the use of a check valve (4.5-6.0 m of water).St). The possibility of self-sealing is realized due to the presence of a pre-fill chamber in the pump housing.
The pumps of this model are suitable for chemical, petroleum, pharmaceutical, mining, paper, fiber, cellulose, textile, food, power plants and urban sewage structures, sewage systems of public facilities, and other industries.
These pumps are particularly effective for pumping gasoline and diesel fuel, bioethanol. High productivity guarantees fast and reliable loading / unloading of railway and automobile tanks, stationary storage facilities, and tank farms.
Documentation Self-priming cantilever pump BZWB 80-65-25/2, 7.5 kW, 2900, Ex, imp: AISI 304
Download instructions, catalog for Self-priming cantilever pump BZWB 80-65-25/2, 7.5 kW, 2900, Ex, imp: AISI 304
