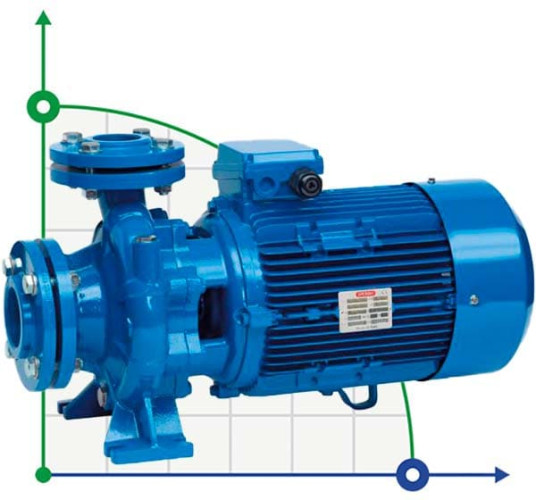

Speroni CS 50-200 C centrifugal monoblock pump
Brand:
SperoniCharacteristics
Output pipe diameter:
DN50
Producer:
Speroni
Power supply:
3х380 V, 50 Hz
Max. head, m:
48.7
Feed height, m:
48.7
Power capacity, kW:
9,2
Pump capacity, cu.m/hour:
78
See all
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Speroni CS 50-200 C centrifugal monoblock pump
Output pipe diameter | DN50 |
Producer | Speroni |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 48.7 |
Feed height, m | 48.7 |
Power capacity, kW | 9,2 |
Pump capacity, cu.m/hour | 78 |
Explosion protection | No |
Max.flow rate, m3/h | 78 |
Nom.pressure, Mpa | 1 |
Max.temperature, C | 100 |
Material of flow channel | cast iron |
Input pipe diameter | DN65 |
Serial number of the pump | CS |
Country of Origin | Italy |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Application | drilling mixtures, brake fluids, process fluids, coolant, antifreeze, antifreeze, non-aggressive liquids, heating systems, pressure increase, water supply, glycerine, detergents, solvents |
Description Speroni CS 50-200 C centrifugal monoblock pump
Centrifugal single-stage electric pump Speroni CS series manufactured according to DIN 24255 - NFE44-II - UNI 7467 standards. The pump and motor are connected via an intermediate flange. This pump is ideal for pumping clean water, water in heating systems and industrial and economic water, condensate and other liquid-flowing, mineral oil-free working media without abrasive or long-fiber inclusions and substances. If it is intended to pump a liquid whose density and/or viscosity differs from the same water parameters, then due to a change in hydraulic power, it is necessary to take into account the power required in this case by the electric motor. The pump with normal suction and spiral monoblock housing is used in industrial water cooling and circulation systems, heating and air conditioning systems, water supply and water treatment, technological processes.
