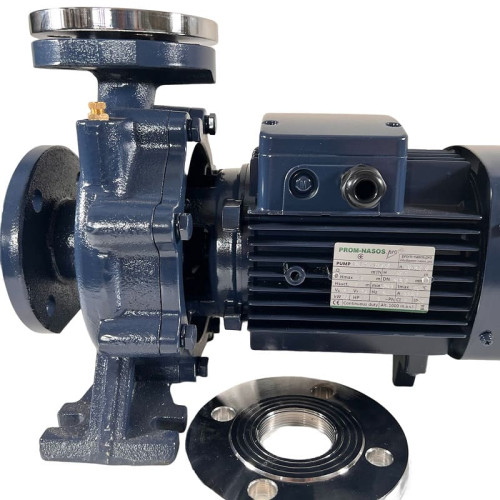

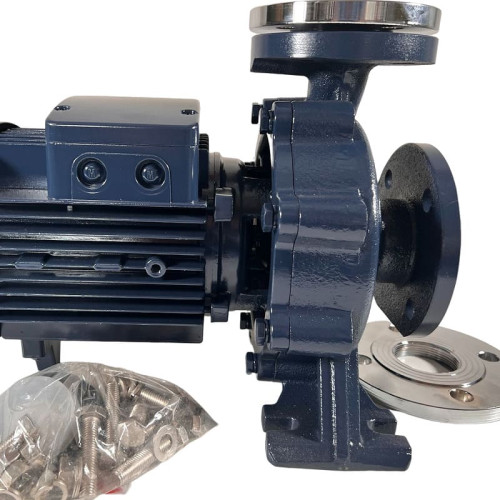

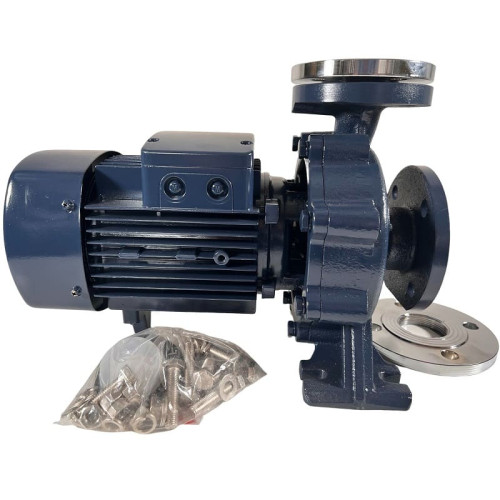

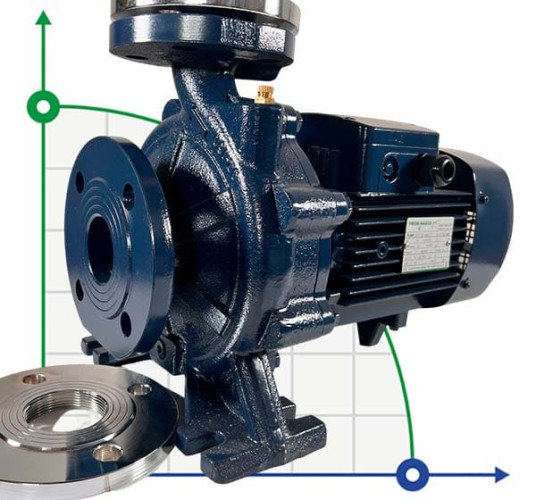

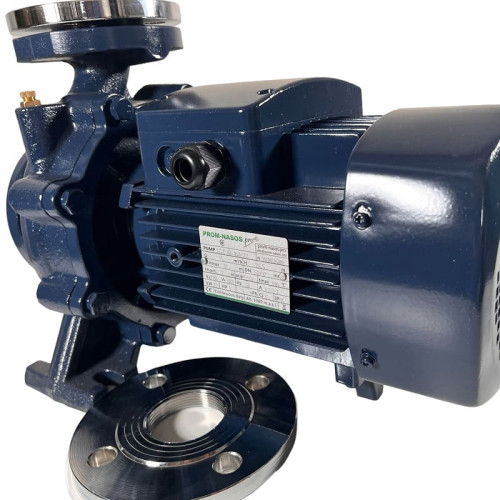

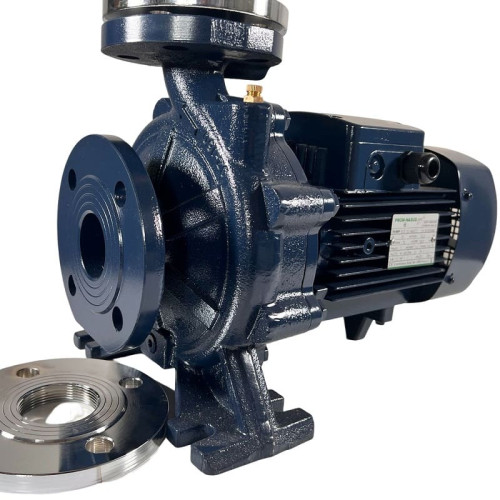

Monoblock centrifugal pump BST 50-160/5.5, 3000

Brand:

BTS Engineering

0 Comment

Characteristics

Volume, m3:

0,08

Output pipe diameter:

Producer:

BTS Engineering

Housing material:

Сast iron

Impeller material:

cast iron

Nom.head, m:

Power supply:

3х380 V, 50 Hz

See all

Documentation

Categories

Console pumps, Cast iron monobloc pumps, Centrifugal industrial pumps, Pumps for water supply

Favorite

Compare

Products from the same category

Monoblock centrifugal pump BST 50-125/2.2, 3000

Pre-order only

$528.70

Monoblock centrifugal pump BST 50-125/3, 3000

In stock

$568.65

Monoblock centrifugal pump BST 50-125/4, 3000

In stock

$571.85

Monoblock centrifugal pump BST 50-160/7.5, 3000

In stock

$738.31

Monoblock centrifugal pump BST 50-200/9.2, 3000

Pre-order only

$1,010.25

Monoblock centrifugal pump BST 50-200/11, 3000

In stock

$1,020.37

Also buy with this product

Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW

$123.52

DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex

$2,156.03

Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW

$82.35

PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE

$365.65

Control panel for pump, 4 kW

$427.46

PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE

$309.30

Control panel for pump, 1.5 kW

$225.79

Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW

$131.26

Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW

$141.53

Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW

$164.70

Control panel for pump, 3 kW

$415.77

Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW

$200.71

DN50 Thermodynamic flanged condensate trap PN16/1.0619

$483.25

Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW

$236.74

Control panel for pump, 5.5 kW

$441.80

Control panel for pump, 2.2 kW

$301.99

Control panel for pump, 7.5 kW

$448.62

DN40 Thermodynamic flanged condensate trap PN16/1.0619

$422.86

Control panel for pump, 22 kW

$1,724.41

Control panel for pump, 11 kW

$463.25

Control panel for pump, 18.5 kW

$748.87

PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE

$62.01

Control panel for pump, 15 kW

$620.95

PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM

$22.57

PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE

$292.50

Features Monoblock centrifugal pump BST 50-160/5.5, 3000

Volume, m3	0,08
Output pipe diameter	50
Producer	BTS Engineering
Housing material	Сast iron
Impeller material	cast iron
Nom.head, m	27
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Feed height, m	27
Nom.flow rate, m3/h	50
Power capacity, kW	5,5
Protection	IP55
Pump capacity, cu.m/hour	50
Explosion protection	No
Seal	Mechanical Seal, Carbon-SiC-NBR
Max.temperature, C	120
Input pipe diameter	65
Material	cast iron
Serial number of the pump	BST
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	with engine
Warranty, months	12
Application	antifreeze, heating systems, non-aggressive liquids, antifreeze, coolant, process fluids, brake fluids, pressure increase, detergents, glycerine, water supply
Analogue for	Ebara 3D, Speroni CFM, Speroni MEM, Speroni CS, CALPEDA NM, Pedrollo HF
Weight, kg	64
Gross weight, kg	75
Length of transport packing, cm	64
Width of transport packing, cm	32
Height of transport packing, cm	43
Height of transport volume, cbm	0,088

Description Monoblock centrifugal pump BST 50-160/5.5, 3000

BST monobloc pump. Purpose: heating systems, water systems, pressure systems, non-aggressive fluids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, coolants, drilling mixtures, liquid mixtures, solvents. Analogs: Calpeda NM, Pedrollo H/ HF, Ebara 3D. Speroni CFM / mem / CS. The pump is used to work with non-aggressive liquids that are not chemically aggressive to the pump body. The impeller is made of cast iron.

Documentation Monoblock centrifugal pump BST 50-160/5.5, 3000

Download instructions, catalog for Monoblock centrifugal pump BST 50-160/5.5, 3000
