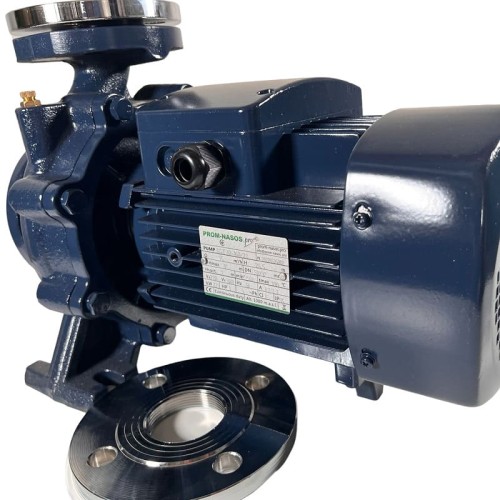

Monoblock pump for brake fluids BST 80-315/55, 3000
Monoblock pump for brake fluids BST 80-315/55, 3000
Monoblock pump for brake fluids BST 80-315/55, 3000
Monoblock pump for brake fluids BST 80-315/55, 3000
Monoblock pump for brake fluids BST 80-315/55, 3000
Monoblock pump for brake fluids BST 80-315/55, 3000
Monoblock pump for brake fluids BST 80-315/55, 3000
Monoblock pump for brake fluids BST 80-315/55, 3000
Monoblock pump for brake fluids BST 80-315/55, 3000
Monoblock pump for brake fluids BST 80-315/55, 3000
Monoblock pump for brake fluids BST 80-315/55, 3000
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
80
Producer:
BTS Engineering
Housing material:
Сast iron
Impeller material:
cast iron
Nom.head, m:
91
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
3 000
See all
Documentation
Favorite
Compare
Products from the same category
Monoblock pump for non-aggressive liquids BST 65-315/75, 3000
Pre-order only
$7,584.92
Pressure boosting pump BST 65-315/90, 3000
Pre-order only
$8,339.64
Monoblock pump for glycerin BST 80-315/45, 3000
Pre-order only
$4,522.43
Monoblock centrifugal pump BST 80-315/75, 3000
Pre-order only
$7,511.39
Pump for antifreeze BST 80-315/90, 3000
Pre-order only
$7,915.11
Monobloc pump for lubricating-cooling liquids BST 100-250/90, 3000
Pre-order only
$7,923.90
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Monoblock pump for brake fluids BST 80-315/55, 3000
Output pipe diameter | 80 |
Producer | BTS Engineering |
Housing material | Сast iron |
Impeller material | cast iron |
Nom.head, m | 91 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 3 000 |
Feed height, m | 91 |
Nom.flow rate, m3/h | 144 |
Power capacity, kW | 55 |
Protection | IP55 |
Pump capacity, cu.m/hour | 144 |
Explosion protection | No |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Max.temperature, C | 120 |
Input pipe diameter | 100 |
Material | cast iron |
Serial number of the pump | BST |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Warranty, months | 12 |
Application | antifreeze, heating systems, non-aggressive liquids, antifreeze, coolant, process fluids, brake fluids, pressure increase, detergents, glycerine, water supply |
Analogue for | Ebara 3D, Speroni CFM, Speroni MEM, Speroni CS, CALPEDA NM, Pedrollo HF |
Weight, kg | 460 |
Length of transport packing, cm | 119 |
Width of transport packing, cm | 48 |
Height of transport packing, cm | 68 |
Height of transport volume, cbm | 0,388 |
Description Monoblock pump for brake fluids BST 80-315/55, 3000
BST monobloc pump. Purpose: heating systems, water systems, pressure systems, non-aggressive fluids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, coolants, drilling mixtures, liquid mixtures, solvents.
Analogs: Calpeda NM, Pedrollo H/ HF, Ebara 3D. Speroni CFM / mem / CS.
The pump is used to work with non-aggressive liquids that are not chemically aggressive to the pump body. The impeller is made of cast iron.
Documentation Monoblock pump for brake fluids BST 80-315/55, 3000
Download instructions, catalog for Monoblock pump for brake fluids BST 80-315/55, 3000
