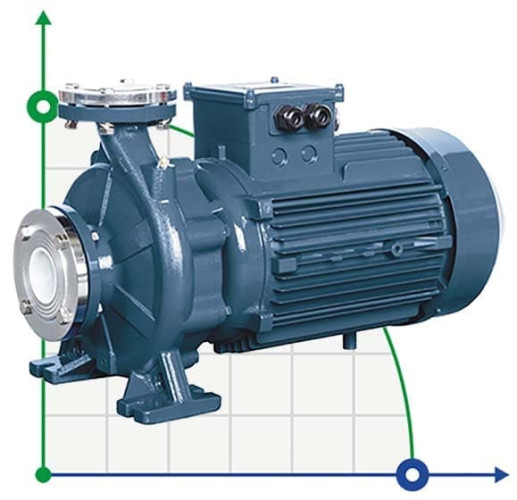

Monoblock centrifugal pump BST4 150-250/15, 1500
Monoblock centrifugal pump BST4 150-250/15, 1500
Monoblock centrifugal pump BST4 150-250/15, 1500
Monoblock centrifugal pump BST4 150-250/15, 1500
Monoblock centrifugal pump BST4 150-250/15, 1500
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
150
Producer:
BTS Engineering
Housing material:
Сast iron
Impeller material:
cast iron
Nom.head, m:
14.7
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
1 500
See all
Documentation
Favorite
Compare
Products from the same category
Monoblock drying pump ETKF-M 100-400, 45 kW, 1500
Pre-order only
$11,296.16
Tosol cooling agent pump BST4 150-200/22, 1500
Pre-order only
$4,358.62
Monobloc centrifugal pump 3DS/I 50-200/9,2
Pre-order only
$2,526.76
Pump for the drying chamber ETKF-M 100-400, 55 kW, 1500
Pre-order only
$13,967.70
Monobloc centrifugal pump 3DS/I 50-200/11,0
Pre-order only
$3,433.27
Antifreeze pump BST4 150-250/18,5, 1500
Pre-order only
$4,105.04
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Monoblock centrifugal pump BST4 150-250/15, 1500
Output pipe diameter | 150 |
Producer | BTS Engineering |
Housing material | Сast iron |
Impeller material | cast iron |
Nom.head, m | 14.7 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 1 500 |
Feed height, m | 14.7 |
Nom.flow rate, m3/h | 250 |
Power capacity, kW | 15 |
Protection | IP55 |
Pump capacity, cu.m/hour | 250 |
Explosion protection | No |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Max.temperature, C | 120 |
Input pipe diameter | 200 |
Material | cast iron |
Serial number of the pump | BST4 |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Warranty, months | 12 |
Application | antifreeze, heating systems, non-aggressive liquids, antifreeze, coolant, process fluids, brake fluids, detergents, glycerine, water supply, pressure increase |
Analogue for | Speroni CFM, Speroni MEM, Speroni CS, CALPEDA NM, Pedrollo HF, Ebara 3D |
Weight, kg | 226 |
Length of transport packing, cm | 96 |
Width of transport packing, cm | 54 |
Height of transport packing, cm | 83 |
Height of transport volume, cbm | 0,430 |
Description Monoblock centrifugal pump BST4 150-250/15, 1500
The BST4 series monoblock pump is designed for heating, water supply , pressure boosting systems, non-aggressive liquids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, cooling fluids, drilling fluids, mixtures of liquids, solvents.
Analogs: Calpeda NM, Pedrollo H/HF, Ebara 3D. Speroni CFM/mem/CS
The pump is used to work with both non-aggressive liquids that are not chemically aggressive towards the pump body.
The impeller is made of cast iron.
Documentation Monoblock centrifugal pump BST4 150-250/15, 1500
Download instructions, catalog for Monoblock centrifugal pump BST4 150-250/15, 1500
