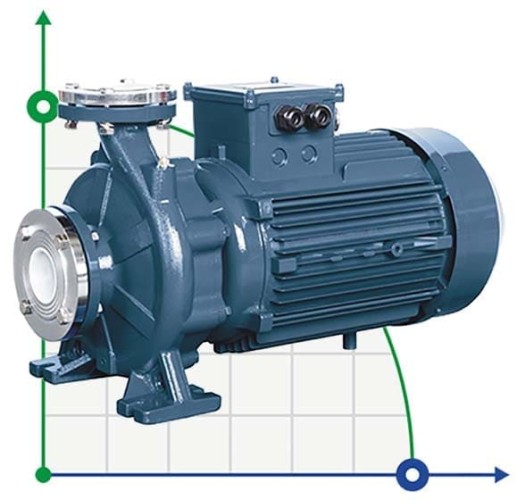

Monoblock pump for non-aggressive liquids BST4 65-315 / 7,5, 1500
Monoblock pump for non-aggressive liquids BST4 65-315 / 7,5, 1500
Monoblock pump for non-aggressive liquids BST4 65-315 / 7,5, 1500
Monoblock pump for non-aggressive liquids BST4 65-315 / 7,5, 1500
Monoblock pump for non-aggressive liquids BST4 65-315 / 7,5, 1500
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
65
Producer:
BTS Engineering
Housing material:
Сast iron
Impeller material:
cast iron
Nom.head, m:
24.3
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
1 500
See all
Documentation
Favorite
Compare
Products from the same category
Pressure boosting pump ETKF-M 65-315, 11 kW, 1500
Pre-order only
$4,972.79
Monoblock water supply pump BST4 65-315/5,5, 1500
Pre-order only
$1,845.55
Monoblock pump for the cooling tower ETKF-M 65-315, 15 kW, 1500
Pre-order only
$5,594.36
Monoblock drying pump ETKF-M 65-400, 11 kW, 1500
Pre-order only
$5,265.11
Monoblock pump for coolant BST4 65-315/11, 1500
Pre-order only
$2,748.43
Circulation pump ETKF-M 65-400,15 kW, 1500
Pre-order only
$5,886.71
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Monoblock pump for non-aggressive liquids BST4 65-315 / 7,5, 1500
Output pipe diameter | 65 |
Producer | BTS Engineering |
Housing material | Сast iron |
Impeller material | cast iron |
Nom.head, m | 24.3 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 1 500 |
Feed height, m | 24.3 |
Nom.flow rate, m3/h | 50 |
Power capacity, kW | 7,5 |
Protection | IP55 |
Pump capacity, cu.m/hour | 50 |
Explosion protection | No |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Max.temperature, C | 120 |
Input pipe diameter | 80 |
Material | cast iron |
Serial number of the pump | BST4 |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Warranty, months | 12 |
Application | antifreeze, heating systems, non-aggressive liquids, antifreeze, coolant, process fluids, brake fluids, pressure increase, detergents, glycerine, water supply |
Analogue for | Ebara 3D, Speroni CFM, Speroni MEM, Speroni CS, CALPEDA NM, Pedrollo HF |
Weight, kg | 130 |
Length of transport packing, cm | 72 |
Width of transport packing, cm | 47 |
Height of transport packing, cm | 62 |
Height of transport volume, cbm | 0,210 |
Description Monoblock pump for non-aggressive liquids BST4 65-315 / 7,5, 1500
The BST4 series monoblock pump is designed for heating, water supply , pressure boosting systems, non-aggressive liquids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, cooling fluids, drilling fluids, mixtures of liquids, solvents.
Analogs: Calpeda NM, Pedrollo H/HF, Ebara 3D. Speroni CFM/mem/CS
The pump is used to work with both non-aggressive liquids that are not chemically aggressive towards the pump body.
The impeller is made of cast iron.
Documentation Monoblock pump for non-aggressive liquids BST4 65-315 / 7,5, 1500
Download instructions, catalog for Monoblock pump for non-aggressive liquids BST4 65-315 / 7,5, 1500
