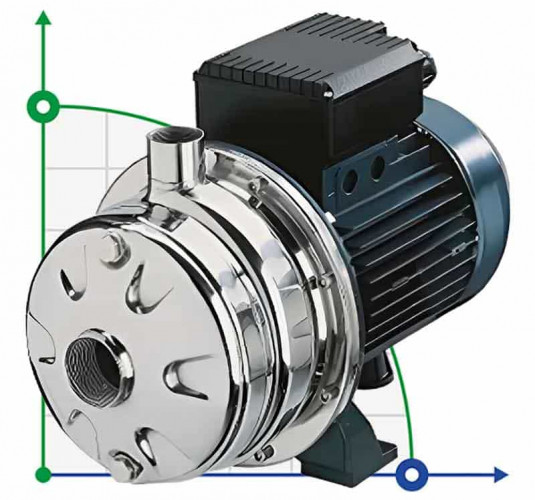

Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)

Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Brand:
ST Pompe
0 Comment
Characteristics
Output pipe diameter:
1"
Producer:
ST Pompe
Housing material:
AISI 304 stainless steel
Impeller material:
AISI 304 stainless steel
Power supply:
3х380 V, 50 Hz
Max. head, m:
71.5
Rate of turn, rpm:
3 000
See all
Documentation
Categories
Console pumps
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1051140
$985.04 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Stainless steel pump for pumping clean water CBX/150A, 1.1 kW, 9 m3/h, 46m, 380V/T, AISI 304 (EBARA 2CDX) Stainless steel pump for pumping clean water CBX/150A, 1.1 kW, 9 m3/h, 46m, 380V/T, AISI 304 (EBARA 2CDX)
Pre-order only
$573.39
Stainless steel pump for garden irrigation CBX/200A, 1.5 kW, 9 m3/h, 55m, 380V/T, AISI 304 (EBARA 2CDX) Stainless steel pump for garden irrigation CBX/200A, 1.5 kW, 9 m3/h, 55m, 380V/T, AISI 304 (EBARA 2CDX)
Pre-order only
$623.39
Stainless steel pump for cooling towers CBX/300, 2.2 kW, 9 m3/h, 63m, 380V/T, AISI 304 (EBARA 2CDX) Stainless steel pump for cooling towers CBX/300, 2.2 kW, 9 m3/h, 63m, 380V/T, AISI 304 (EBARA 2CDX)
Pre-order only
$796.88
Stainless steel pump for pumping clean water CBX/300A, 2.2 kW, 12.6 m3/h, 55m, 380V/T, AISI 304 (EBARA 2CDX) Stainless steel pump for pumping clean water CBX/300A, 2.2 kW, 12.6 m3/h, 55m, 380V/T, AISI 304 (EBARA 2CDX)
Pre-order only
$802.74
Stainless steel pump for cooling towers CBX/400A, 3 kW, 12.6 m3/h, 66m, 380V/T, AISI 304 (EBARA 2CDX) Stainless steel pump for cooling towers CBX/400A, 3 kW, 12.6 m3/h, 66m, 380V/T, AISI 304 (EBARA 2CDX)
Pre-order only
$985.04
Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX) Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX)
Pre-order only
$1,162.96
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$135.86
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,371.63
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$90.59
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$402.21
Control panel for pump, 4 kW Control panel for pump, 4 kW
$470.20
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$340.22
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$248.38
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$144.39
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$155.70
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$181.17
Control panel for pump, 3 kW Control panel for pump, 3 kW
$457.34
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$220.78
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$531.58
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$260.42
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$485.99
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$332.18
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$493.49
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$465.14
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,896.86
Control panel for pump, 11 kW Control panel for pump, 11 kW
$509.57
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$823.76
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$68.21
Control panel for pump, 15 kW Control panel for pump, 15 kW
$683.06
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$24.82
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$321.75
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Output pipe diameter
1"
Producer
ST Pompe
Housing material
AISI 304 stainless steel
Impeller material
AISI 304 stainless steel
Power supply
3х380 V, 50 Hz
Max. head, m
71.5
Rate of turn, rpm
3 000
Feed height, m
71.5
Power capacity, kW
3
Protection
IP55
Pump capacity, cu.m/hour
9
Explosion protection
No
Seal
Mechanical Seal, Carbon/Ceramic/NBR
Max.flow rate, m3/h
9
Max.temperature, C
90
Shaft material
AISI 303
Pressure, bar
8
Suction capacity (NPSH), m
7
Input pipe diameter
1 1/4"
Material
AISI 304 stainless steel
Serial number of the pump
CBX
Country of Origin
Italy
PumpType
console
Drive Type
electric
Installation Type
horizontal
Type of configuration
with engine
Application
beer, air conditioning, water, irrigation, water supply, milk, glaze, heating, guilt
Analogue for
Ebara 2СD, Ebara 2СDX, Lowara CA
Weight, kg
28,8
Length of transport packing, cm
585
Width of transport packing, cm
237
Height of transport packing, cm
285
Description Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
CBX series centrifugal pumps with two impellers, made entirely of stainless steel, are suitable for domestic, agricultural and industrial applications. All parts in contact with the pumped liquid are made of AISI 304 stainless steel to ensure maximum hygiene and corrosion resistance. Pump housing, impeller, diffusers: AISI 304 stainless steel. Motor shaft: AISI 303 stainless steel. Bracket and motor housing: aluminium. Mechanical seal: Cer/Car/NBR.
Documentation Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)

Download instructions, catalog for Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
