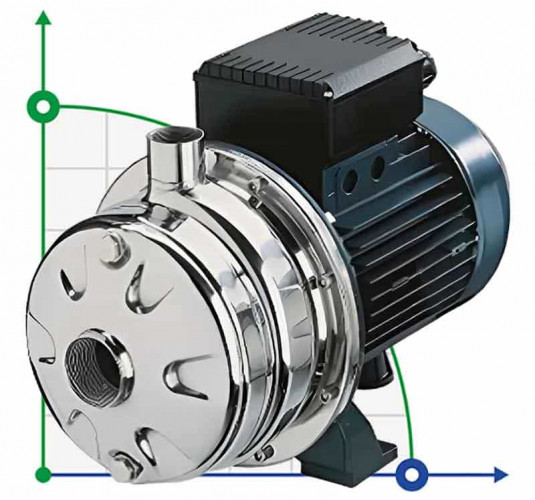

Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX)
Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX)
Brand:
ST PompeCharacteristics
Output pipe diameter:
1"
Producer:
ST Pompe
Housing material:
AISI 304 stainless steel
Impeller material:
AISI 304 stainless steel
Power supply:
3х380 V, 50 Hz
Max. head, m:
75
Rate of turn, rpm:
3 000
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Stainless steel pump CBX/400, 3 kW, 9 m3/h, 71.5 m, 380V/T, AISI 304 (EBARA 2CDX)
Pre-order only
$985.04
Stainless steel pump for pumping clean water CBX/300A, 2.2 kW, 12.6 m3/h, 55m, 380V/T, AISI 304 (EBARA 2CDX)
Pre-order only
$802.74
Stainless steel pump for cooling towers CBX/400A, 3 kW, 12.6 m3/h, 66m, 380V/T, AISI 304 (EBARA 2CDX)
Pre-order only
$985.04
Stainless steel pump for pumping industrial liquids CHX/150, 1.1 kW, 24 m3/h, 21m, 380V/T, AISI 304 (EBARA DWC)
Pre-order only
$593.98
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX)
Output pipe diameter | 1" |
Producer | ST Pompe |
Housing material | AISI 304 stainless steel |
Impeller material | AISI 304 stainless steel |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 75 |
Rate of turn, rpm | 3 000 |
Feed height, m | 75 |
Power capacity, kW | 3,7 |
Protection | IP55 |
Pump capacity, cu.m/hour | 12.6 |
Explosion protection | No |
Seal | Mechanical Seal, Carbon/Ceramic/NBR |
Max.flow rate, m3/h | 12.6 |
Max.temperature, C | 90 |
Shaft material | AISI 303 |
Pressure, bar | 8 |
Suction capacity (NPSH), m | 7 |
Input pipe diameter | 1 1/2" |
Material | AISI 304 stainless steel |
Serial number of the pump | CBX |
Country of Origin | Italy |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Application | beer, air conditioning, irrigation, water, water supply, milk, guilt, heating, glaze |
Analogue for | Lowara CA, Ebara 2СDX, Ebara 2СD |
Weight, kg | 37,5 |
Description Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX)
CBX series centrifugal pumps with two impellers, made entirely of stainless steel, are suitable for domestic, agricultural and industrial applications. All parts in contact with the pumped liquid are made of AISI 304 stainless steel to ensure maximum hygiene and corrosion resistance. Pump housing, impeller, diffusers: AISI 304 stainless steel. Motor shaft: AISI 303 stainless steel. Bracket and motor housing: aluminium. Mechanical seal: Cer/Car/NBR.
Documentation Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX)
Download instructions, catalog for Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX)
