Stainless steel pump for garden irrigation CX/120A, 0.9 kW, 15 m3/h, 22.8m, 380V/T, AISI 304 (EBARA CDX 200/12)

Brand:
ST Pompe
Characteristics
Output pipe diameter:
1"
Producer:
ST Pompe
Housing material:
AISI 304 stainless steel
Impeller material:
AISI 304 stainless steel
Power supply:
3х380 V, 50 Hz
Max. head, m:
22.8
Rate of turn, rpm:
3 000
See all
Categories
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1051124
$405.79 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Also buy with this product
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Stainless steel pump for garden irrigation CX/120A, 0.9 kW, 15 m3/h, 22.8m, 380V/T, AISI 304 (EBARA CDX 200/12)
Output pipe diameter
1"
Producer
ST Pompe
Housing material
AISI 304 stainless steel
Impeller material
AISI 304 stainless steel
Power supply
3х380 V, 50 Hz
Max. head, m
22.8
Rate of turn, rpm
3 000
Feed height, m
22.8
Power capacity, kW
0,9
Protection
IP55
Pump capacity, cu.m/hour
15
Explosion protection
No
Seal
Mechanical Seal, Carbon/Ceramic/NBR
Max.flow rate, m3/h
15
Max.temperature, C
90
Shaft material
AISI 303
Pressure, bar
8
Suction capacity (NPSH), m
7
Input pipe diameter
1 1/2"
Material
AISI 304 stainless steel
Serial number of the pump
CX
Country of Origin
Italy
PumpType
console
Drive Type
electric
Installation Type
horizontal
Type of configuration
with engine
Application
air conditioning, beer, water, irrigation, water supply, milk, glaze, heating, guilt
Analogue for
Ebara СD, Ebara СDX, Lowara CEAM, Pedrollo CP-ST, Speroni CMX
Weight, kg
12,9
Length of transport packing, cm
452
Width of transport packing, cm
244
Height of transport packing, cm
308
Description Stainless steel pump for garden irrigation CX/120A, 0.9 kW, 15 m3/h, 22.8m, 380V/T, AISI 304 (EBARA CDX 200/12)

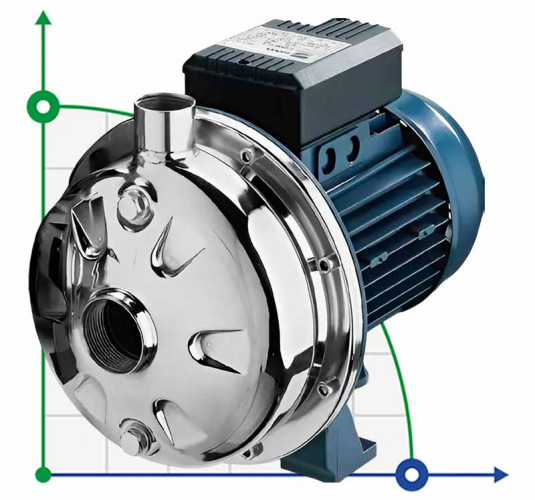

The CX series centrifugal pumps are made entirely of stainless steel, suitable for domestic, agricultural and industrial applications. All parts in contact with the pumped liquid are made of AISI 304 stainless steel to ensure maximum hygiene and corrosion resistance. Pump housing, impeller, diffusers: AISI 304 stainless steel. Motor shaft: AISI 303 stainless steel. Motor bracket and housing: aluminium. Mechanical seal: Car/Cer/NBR (standard).
Documentation Stainless steel pump for garden irrigation CX/120A, 0.9 kW, 15 m3/h, 22.8m, 380V/T, AISI 304 (EBARA CDX 200/12)

Download instructions, catalog for Stainless steel pump for garden irrigation CX/120A, 0.9 kW, 15 m3/h, 22.8m, 380V/T, AISI 304 (EBARA CDX 200/12)
