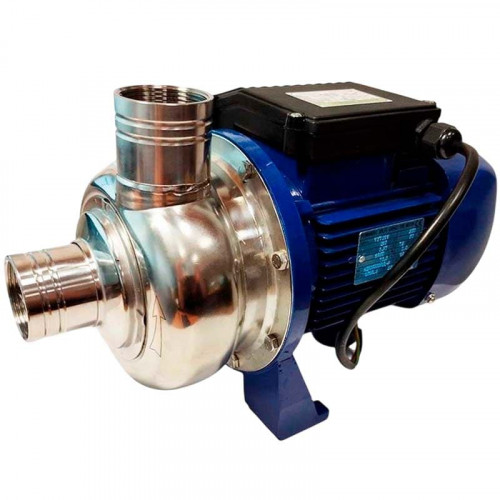

Centrifugal pump for water BB250/055D, AISI304, 220V/50Hz, 2900
Brand:
BTS Engineering0 Comment
Characteristics
Output pipe diameter:
G1 1/2
Producer:
BTS Engineering
Power supply:
1х220 V, 50 Hz
Max. head, m:
10.5
Rate of turn, rpm:
2 900
Feed height, m:
10.5
Dimensions, mm:
360x170x226
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Centrifugal pump for glycol solution BB250/075D, AISI304, 220V/50Hz, 2900
In stock
$251.31
$268.77
-6%
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Centrifugal pump for water BB250/055D, AISI304, 220V/50Hz, 2900
Output pipe diameter | G1 1/2 |
Producer | BTS Engineering |
Power supply | 1х220 V, 50 Hz |
Max. head, m | 10.5 |
Rate of turn, rpm | 2 900 |
Feed height, m | 10.5 |
Dimensions, mm | 360x170x226 |
Power capacity, kW | 0,55 |
Protection | IP55 |
Pump capacity, cu.m/hour | 24 |
Explosion protection | No |
Seal | Mechanical Seal, CAR/SIC/VITON |
Max.flow rate, m3/h | 24 |
Max.temperature, C | 80 |
Material of flow channel | AISI 304 stainless steel |
Input pipe diameter | G1 1/2 |
Material | AISI 304 stainless steel |
Serial number of the pump | BB |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Weight, kg | 10,2 |
Description Centrifugal pump for water BB250/055D, AISI304, 220V/50Hz, 2900
The BB series centrifugal pumps are suitable for pumping clean water and mildly aggressive liquids, glycol solutions and other liquids. The pumps can be used in industrial, domestic, washing, swimming pool and irrigation systems, etc. This pump can be used at full head without overloading the motor. Liquid temperature: -15°C~+80°C.
Documentation Centrifugal pump for water BB250/055D, AISI304, 220V/50Hz, 2900
Download instructions, catalog for Centrifugal pump for water BB250/055D, AISI304, 220V/50Hz, 2900
