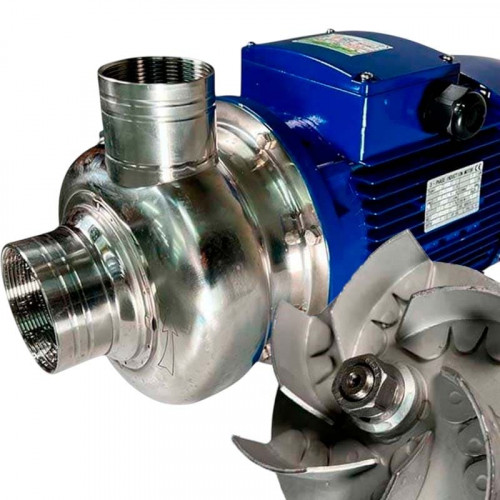

Open impeller pump BK50, 0,37kW, AISI 304, 380V/50Hz, 2900
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
G1
Producer:
BTS Engineering
Power supply:
3х380 V, 50 Hz
Max. head, m:
11.6
Rate of turn, rpm:
2 900
Feed height, m:
11.6
Dimensions, mm:
300x170x191
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Open impeller pump BK50, 0,37kW, AISI 304, 380V/50Hz, 2900
Output pipe diameter | G1 |
Producer | BTS Engineering |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 11.6 |
Rate of turn, rpm | 2 900 |
Feed height, m | 11.6 |
Dimensions, mm | 300x170x191 |
Impeller type | open impeller |
Power capacity, kW | 0,37 |
Pump capacity, cu.m/hour | 6 |
Flow rate, l/min | 100 |
Explosion protection | No |
Max.flow rate, m3/h | 6 |
Max.temperature, C | 80 |
Material of flow channel | AISI 304 stainless steel |
Input pipe diameter | G1 1/4 |
Material | AISI 304 stainless steel |
Serial number of the pump | BK |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Weight, kg | 6,2 |
Description Open impeller pump BK50, 0,37kW, AISI 304, 380V/50Hz, 2900
The BK series open impeller centrifugal pumps are used in industry for washing vegetables, fruit, meat, fish and other foodstuffs, in surface treatment of metal products, in industrial systems for washing glass containers, boxes, cans, bottles, in cooling systems, in canteen dishwashers, and in industrial laundries. In general, the open impeller centrifugal pumps of the BK series are designed for pumping both clean and fairly dirty water. The pump casing, back cover, impeller and shaft are made of AISI304 stainless steel.
Documentation Open impeller pump BK50, 0,37kW, AISI 304, 380V/50Hz, 2900
Download instructions, catalog for Open impeller pump BK50, 0,37kW, AISI 304, 380V/50Hz, 2900
