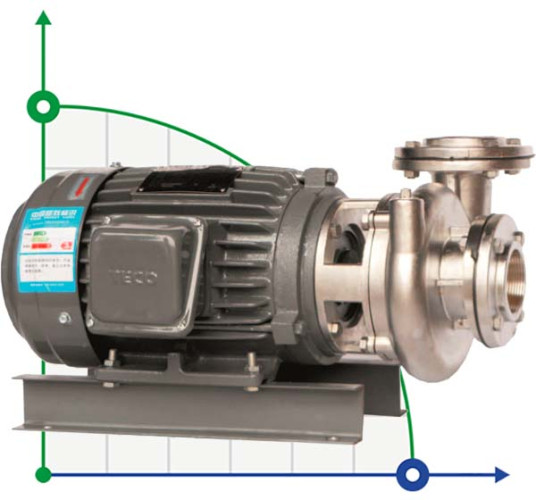

Centrifugal pump QHS-25-1, AISI 316

Brand:
Qeehua
Characteristics
Output pipe diameter:
25
Producer:
Qeehua
Power supply:
3х380 V, 50 Hz
Max. head, m:
10
Feed height, m:
10
Power capacity, kW:
0,75
Pump capacity, cu.m/hour:
8.4
See all
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1036808
$1,582.81 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Also buy with this product
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Centrifugal pump QHS-25-1, AISI 316
Output pipe diameter
25
Producer
Qeehua
Power supply
3х380 V, 50 Hz
Max. head, m
10
Feed height, m
10
Power capacity, kW
0,75
Pump capacity, cu.m/hour
8.4
Max.flow rate, m3/h
8.4
Shaft material
SSIC
Input pipe diameter
25
Material
AISI 316 stainless steel
Serial number of the pump
QHS
Country of Origin
China
PumpType
console
Drive Type
electric
Installation Type
horizontal
Type of configuration
with engine
Description Centrifugal pump QHS-25-1, AISI 316
The pump is used for the production of clean water for general purposes, surface treatment, in the food and chemical industries. The pump housing can be made of AISI304 or AISI316 steel, shaft sealing type according to chemical requirements. The main body of the pump is made of high-quality materials by precision casting, has a strong and compact design. Product advantages: unique technology, low noise level, high efficiency, corrosion resistance, long service life. Patented technology, CE, SGS quality certification of the European Union. High heat resistance, suitable for many types of liquid. Centrifugal pump with 4-pole motor to solve the problem of rapid increase in liquid temperature. It is equipped with an idling protection device, which can prevent damage to the shaft compaction due to pump idling in the event of a lack of liquid. Secondary energy efficiency, energy saving and Environmental Protection (individual).
Documentation Centrifugal pump QHS-25-1, AISI 316

Download instructions, catalog for Centrifugal pump QHS-25-1, AISI 316
