Brand:
AQUACharacteristics
Producer:
AQUA
Input 4-20 mA:
No
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
14
Control:
Manual
Pulse input(From Flowmetwer):
No
Hose standard size:
4x6
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Dosing pump for swimming pools PDE HC899-3 17-05/25-01 230V PP-GL-DT
Pre-order only
$443
PDE enzyme dosing pump HC899-3 17-05/25-01 230V PP-GL-VT
In stock
$443
Dosing pump PDE HC899-4 25-2.5/42-1 230V PVC-GL-VT
Pre-order only
$552
Electromagnetic dosing pump PDE HC200+ CST-M60 PVDF-CE-VT 230V, 1-10 l/h, 7-1 bar
Pre-order only
$594
Electromagnetic dosing pump PDE HC200+ CST M70 240V PP-GL-VT, 1.8-14 l/h, 20-1 bar
Pre-order only
$566
Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Pre-order only
$619
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Water disinfection dosing pump PDE HC200+ CST M60 240V PP-GL-VT, 1-10 l/h, 7-1 bar
Producer | AQUA |
Input 4-20 mA | No |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 14 |
Control | Manual |
Pulse input(From Flowmetwer) | No |
Hose standard size | 4x6 |
Input foe sensor PH | No |
Input for sensor RX | No |
Pump head type | PP 1/2" |
Flow rate, l/h | 10 |
Dosage mode: Continually ON-OFF | Yes |
Input foe sensor | No |
Protection level | IP65 |
Pressure, bar | 7 |
Dosage mode: proportional PROP | No |
Input for sensor CD | No |
Meterial of head pump | PP |
Input foe temperature sensor | No |
Electromagnet | M60 |
Material | PP |
Input for level sensor reagent | No |
Serial number of the pump | HC200 |
Country of Origin | Italy |
PumpType | dosing solenoid |
Drive Type | electric |
Gross weight, kg | 4.5 |
Length of transport packing, cm | 350 |
Width of transport packing, cm | 295 |
Height of transport packing, cm | 160 |
Description Water disinfection dosing pump PDE HC200+ CST M60 240V PP-GL-VT, 1-10 l/h, 7-1 bar

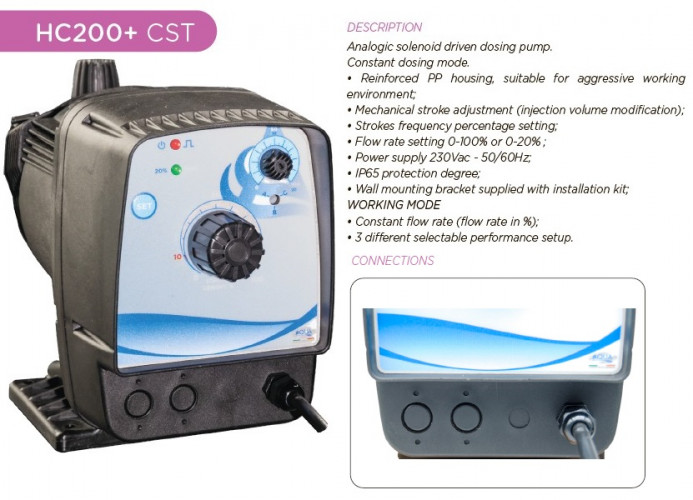

Analog metering pump with electromagnetic drive. Constant dosing mode. - Reinforced polypropylene housing, suitable for aggressive working environments; - Mechanical adjustment of the piston stroke (change in injection volume); - Stroke rate setting in percent; - Flow rate setting 0-100% or 0-20%; - Power supply 230 V AC - 50/60 Hz; - Protection class IP65; - Wall mounting bracket included in the installation kit; OPERATING MODE - Constant flow rate (flow rate in %); - 3 different performance settings to choose from.
Documentation Water disinfection dosing pump PDE HC200+ CST M60 240V PP-GL-VT, 1-10 l/h, 7-1 bar
Download instructions, catalog for Water disinfection dosing pump PDE HC200+ CST M60 240V PP-GL-VT, 1-10 l/h, 7-1 bar
Water disinfection dosing pump PDE HC200+ CST M60 240V PP-GL-VT, 1-10 l/h, 7-1 bar reviews
