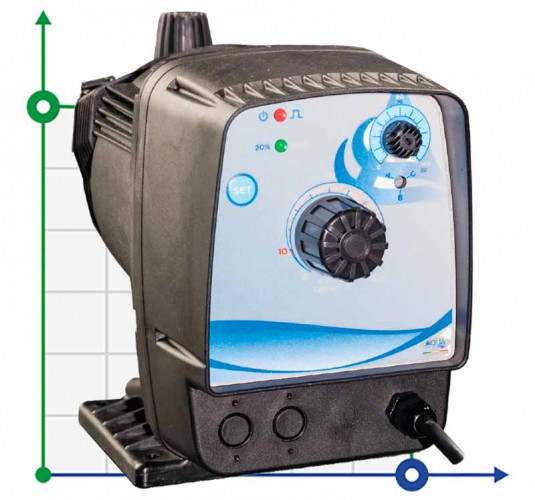

Dosing pump PDE HC200 04-18 230V PP-GL-VT
Dosing pump PDE HC200 04-18 230V PP-GL-VT
Dosing pump PDE HC200 04-18 230V PP-GL-VT
Dosing pump PDE HC200 04-18 230V PP-GL-VT
Dosing pump PDE HC200 04-18 230V PP-GL-VT
Brand:
AQUACharacteristics
Producer:
AQUA
Input 4-20 mA:
No
Output service relay:
No
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
34
Control:
Microprocessing
Pulse input(From Flowmetwer):
No
See all
Categories
Favorite
Compare
Products from the same category
Proportional solenoid dosing pump HC150 PI (1XN-1/N)+Liv.-5 02-20/2,5-18/03-15 230V PP-GL-VT
Pre-order only
$355.55
HC 150 PI 3, 5-8 PP-GL-YT 230V solenoid metering pump
Pre-order only
$136.18
Dosing pump PDE HC200 02-18 230V PP-GL-VT
Pre-order only
$657.08
Dosing pump PDE HC200 09-09 230V PP-GL-VT
Pre-order only
$657.08
Dosing pump PDE HC200 10-10 110V PP-GL-VT
Pre-order only
$755.67
Dosing pump PDE HC200 15-03 230V PP-GL-VT
Pre-order only
$657.08
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Dosing pump PDE HC200 04-18 230V PP-GL-VT
Producer | AQUA |
Input 4-20 mA | No |
Output service relay | No |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 34 |
Control | Microprocessing |
Pulse input(From Flowmetwer) | No |
Support for flow sensor | No |
Diaphragm stroke per min. | 120 |
Hose standard size | 4x6 |
Input foe sensor PH | No |
Model | MST |
Input for sensor RX | No |
Pump head type | PP 3/8" |
Flow rate, l/h | 12 |
Dosage mode: Continually ON-OFF | So |
Input foe sensor | No |
Pressure, bar | 18 |
Pump body material | Polypropylene |
Dosage mode: proportional PROP | So |
Input for sensor CD | No |
Product regulation 0-100% | So |
Input foe temperature sensor | No |
Material | PP |
Input for level sensor reagent | So |
Input mA | No |
Serial number of the pump | HC200 |
Country of Origin | Italy |
PumpType | dosing solenoid |
Drive Type | electric |
Application | hypochlorite, algicide, caustic, acids, of hydrochloric acid, alkalis, coagulant |
Weight, kg | 5 |
Description Dosing pump PDE HC200 04-18 230V PP-GL-VT

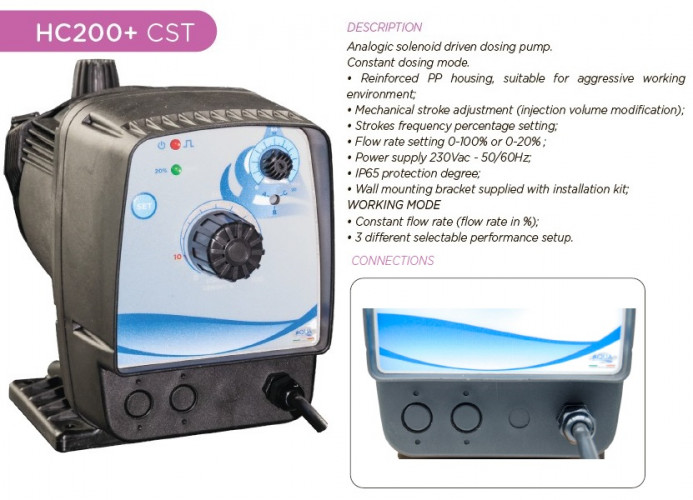

Electromagnetic solenoid dosing pumps HC 200 CST for constant and proportional dosing.
- High consumption;
- Mechanical adjustment of the pump operation (injection volume)
- Supports level sensor;
- Power supply 220-230V 50 / 60Hz. On demand-110V;
WORKING MODE
- Manual regulation of flow speed 0-100%;
- Emergency level switch;
- Microprocess technology, digital operation and display
- Level sensor input (low level sensor and connector are not included)
- Protection class-IP65;
